ANALYZERS:   SPECTRUM,   LOGIC,  NETWORK, COMMUNICATION

Model Number SPECTRUM ANALYZERS GENERAL PURPOSE Price US$
Anritsu MS420B 10Hz -30MHz Spectrum/Network analyzer. 0.01Hz resolution. pic 1450
Anritsu MS710C 10kHz -23GHz, 140GHz with ext. mixer 100Hz resolution, Synthesized LO +30 to -109dBm. 5500
HP 141T Spectrum Analyzer Mainframe. Storage mode 100% operational.  pic 450
HP 3580A 5Hz -50kHz. 100nV to 20V amplitude, 80dB dynamic range. pic    Rechargeable batt. +$150 750
HP 3582A 0.02Hz - 25.6kHz.  Dual channel,+30dBV to -120 dBV dynamic range. Frequency: 1Hz to 25kHz. Frequency accuracy: 0.003%. Automatic measurements under PC control.  pic 1495
HP 3585A 20Hz -40MHz with 0.1Hz resolution. Dual channel.  Built in tracking generator, 80dB dynamic range, 3Hz resolution BW, Digital signal storage . Autoranging attenuator, GPIB interface.  pic 2250
HP 8552B IF section for use with 8553/54/55/56 RF section. 20Hz-300kHz res., 500Hz max accuracy pic SOLD 450
HP 8553B 1kHz-110MHz RF section  pic Shown with optional display unit and IF section. 450

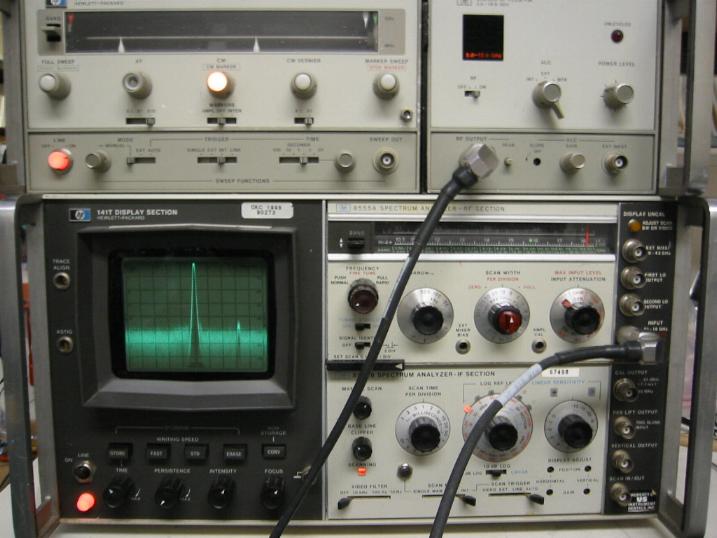

HP 8555A 10MHz-18GHz RF  section pic Shown with optional display unit and IF section. 750
HP 8558A 10kHz-1.5GHz, 70dB attenuator, -60dBm sensitivity. With HP182 Large screen display   1450
HP 8561A 1kHz -6.5GHz, Portable spectrum analyzer. 110Hz min resolution. GPIB, 121dBm noise floor. pic   5950
HP 8568B 100Hz-1.5GHz Synthesized accuracy delivers 10Hz resolution. Memory. RF SECTION only 1850
HP 8590A 10kHz -1.5GHz, Portable spectrum analyzer. 1 kHz resolution, 4 digit accy., GPIB.   pic    2500
HP 8591A 10kHz -1.8GHz, Portable spectrum analyzer. 1kHz resolution, 4 digit accuracy. pic    3295
HP 8591A 10kHz -1.8GHz, Tracking generator (opt 010), AM/FM Demodulator. with opt102 & 21.  pic    5750
HP 8595E 9kHz -6.5GHz Spectrum analyzer. 30Hz resolution. Available options: 004, 021, 130   5950
TEK 2710 10kHz -1.8GHz, 3kHz to 5MHz Resolution BW, 80dB dynamic range. -143dBm sensitivity. pic   2500

        AUDIO SPECTRUM AND DISTORTION ANALYZERS

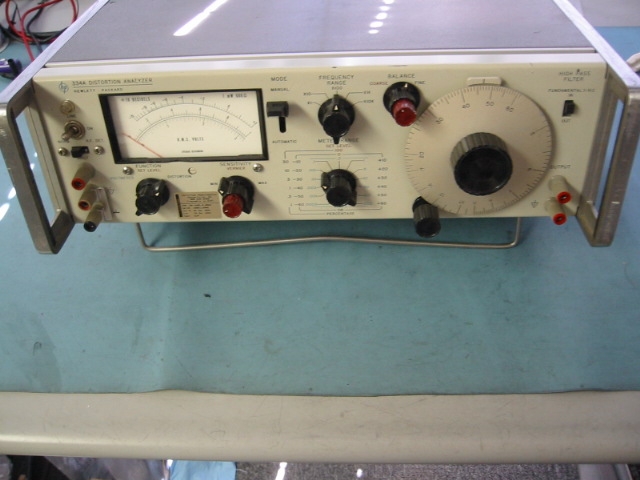

HP 334A Distortion Analyzer. 5Hz-600kHz. -60dB sensitivity, 300V voltmeter, detector output, filter function.  pic 395
HP 3580A Spectrum Analyzer. 5Hz-50kHz. 100nV to 20V amplitude, 80dB dynamic range. Batt avail. pic 750
HP 3582A Spectrum Analyzer. Dual channel, 0.02Hz- 25.6 kHz. +30dBV to -120 dBV dynamic range. Frequency spans from 1Hz to 25kHz. Frequency accuracy: 0.003%.   pic 1495
Sound Tech 1700A Distortion analyzer & Generator in one instrument. 100kHz, THD, RMS Volts, Ratio   pic 795
TEK  AA5001 Programmable Audio distortion analyzer.10Hz-100kHz. THD, THD+Noise, IMD, RMS Voltage measurments. GPIB 475

LOGIC ANALYZERS and DIGITAL SIGNAL ANALYZERS
Agilent 1670D 136 channel, 100MHz/250MHz, Deep memory; 1MB per channel (opt 030 available)  pic 2950
Agilent 1670G 136 channel, 500MHz Timing/ 150MHz State, 128kB/chan, 3.5nS setup/hold. pic 4595
HP 1630D 100MHz Timing-25MHz State 43 channels. Glitch capture capability, 16 Timing channels and 27 state ch. simultaneously. ALL PROBES INCLUDED! HP 1630G with 65 channels  $350 pic 295
HP 1631D 50MHz  200MS/s  Scope & 100MHz  & 43Ch. Logic analyzer. Flexible triggering. All probes included. pic 750
HP 1650A 100MHz Timing-25 MHz State 80 chan.   Menu driven user interface, Floppy  pic All probes! 795
HP 1650B 100MHz Timing-35 MHz State 80 chan.. Menu driven user interface, floppy   pic All probes!. 795
HP 1651A 100MHz Timing-25 MHz State 32 ch.. Menu driven user interface, Floppy  pic All probes incl. 495
HP 1662C 500MHz Timing-100MHz State 68 channels. 8kb/chan memory. Mouse, Floppy. 1250
HP 1662AS 500MHz Timing-100MHz State 68 channels with  250MHz, 1Gs/s oscilloscope. 8kb/chan. Mouse, Floppy. All probes included. 2500
HP 1662CS 500MHz Timing-100MHz State 136 channels with  250MHz, 1Gs/s oscilloscope. 8kb/chan. Mouse, Floppy. All probes included. 2950
HP 1663A 500MHz Timing-100MHz State 34 chan. 8kb/chan. Mouse, Floppy. All probes included. pic 750
HP 16500A Logic Analyzer mainframe. Color 9" CRT, floppy,  4MB memory lets you use 16550A/16555A 250
HP 16500A 100MHz Timing-35MHz state 80 chan. Color Display, FDD,  4MB memory.  100MHz . All  probes  for 64 channels are included. 6month warranty 790
HP 16500A 500MHz Timing/100MHz state 80 chan . 9" Color Display , floppy, Printer port,   4MB  memory. 6mo. warranty  pic All  probes included. 895
HP 16500A Logic Analyzer-Digital Storage Oscilloscope .Color, FDD,  4MB memory. Price is based on configuration. 6mo. warranty  pic call
HP 16500B Logic Analyzer 500MHz Timing, 110MHz state, 68Channels, 2MB memory. Probes included 1295
HP 16500C Logic Analyzer 500MHz Timing, 110MHz state, 68Channels, 2MB memory. Probes included 1595
HP 16505A Prototype Analyzer. High level language debugging in windows environment for  HP 16500C/D 250
HP 16510A 100 MHz Timing /35 MHz state, 80 channel  Logic Analyzer module.  For HP 16500A/B/C.  150
HP 16550A 500 MHz Timing-100 MHz state, 102 channel  module. 4K/8K per channel. For 16500A/B/C.  490
HP 16555A 500 MHz Timing-110 MHz State, 68 channel Logic Analyzer module. 2MB mem. WIth probes 595
HP 16555D 500MHz Timing, 110MHz state, 68Channels, 2MB memory. Probes included 695
TEK TLA7M2 68Ch, 2GHz timing, 100MHz state analyzer module for TLA 700 series analyzers 495
Tektronix 1241C 100 MHz, 36 ch logic analyzer. With boards, test probes and ROM packs. pic 250
TEKTRONIX 3002CH Logic analyzer with 20 channels at 400 MHz or 4 channels at 2GHz timing analysis. 24KB per channel. Included modules: 30HSM and 32GPD. Reqieres monitor. Probes & pods are available. 350
NETWORK ANALYZERS
HP 3577A 200MHz Network analyzer with built in signal source. 3 input channels.  Newer s/n   pic 2950
HP 4195A Repair Service. From $650 call
HP 4195A Network/Spectrum/Impedance Analyzer. 500MHz, Two port, New display. Opt 001 pic SOLD 4950
HP 8405A Vector voltmeter 1-1000MHz, 1uV-1V input, PLL capable. Accesories  picture 595
HP 8410A Network analyzer mainframe. Requires display (available separately) and S-parameters test set.   250
HP 8755C Scalar Network analyzer 10MHz-26.5GHz. 3 input channels. HP11664A detectors available for $250each. SOLD   495
Wiltron 560A Scalar network analyzer, 10MHz to 40GHz. Three channels. Memory. Detectors available   pic 650

AC LINE DISTURBANCE ANALYZERS
BMI 4800 AC power analyzer and data recorder. Detect virtually any type of problem with AC power 650
Dranetz 606 3 channels,  600 VAC max. Detects and measures Impulse, Sag/Surge,  Slow Average.  Clock with backup records time of of the event. Automatically prints disturbance information.  Built in printer. pic 650
Dranetz 626 AC power analyzer with optional graphics printer. PA-6030, PA-6002, PA-6003, PA-6006  395
Dranetz 808 Power demand analyzer with built in printer. Accurate record of  power consumption over time 795

SIGNAL ANALYZERS

Communication Analyzers: Protocol, LAN, Telephone, Cable

MISCELLANEOUS OTHER ANALYZERS
Agilent E4406A Communication Analyzer. Option BAC ( CDMA measurment personality ) pic 9500
Agilent 53310A Modulation Domain Analyzer. 3 channel. 2.5GHz.  Options 1, 10, 30 1995
Agilent 4155A Repair Service. From $950  pic call
HP 853A Spectrum analyzer mainframe. For HP 8557, HP 8558, HP 8559 modules. 650
HP 4145A Semiconductor parameter analyzer. Analysis of V/I characteristics of semicond. materials. pic 2500
HP 4145B Repair Service. From $650   pic call
HP 4155A Repair Service. From $950  pic call
HP 4155B Repair Service. From $950  pic call
HP 4155C Repair Service. From $950  pic call
HP 4156A Repair Service. From $950  pic call
HP 4156C Repair Service. From $950  pic call
HP 4194A Repair Service. From $650. call
HP 8750A Storage Normalizer unit. Adds digital storage to HP 8755, 8754A, 8505A, 8410/8412B. 150
HP 8902A Measuring Receiver. RF power Modulation, Frequency measurments up to 1.3GHz with one instrument. With Opt 001. Other options upon request. 5850
HP 8970A Noise figure meter. Provides accurate noise measurments up to 1500MHz 1500
HP 53310A Modulation Domain Analyzer. 3 channel. 2.5GHz. Options 001, 010, 030 1995
Impulse Semi TLP Transmission Line Pulse Test System. Accurately measure ESD parameters for wafers or packaged devices.pic call
Minolta TV-2130 Color and Luminance analyzer. Analyzer any color displays for color purity and consistency 650
Minolta TV-2140 Color and Luminance analyzer. Analyzer any color displays for color purity and consistency 750
Minolta TV-2150 Color and Luminance analyzer. Analyzer any color displays for color purity and consistency 795
OUR INVENTORY CHANGES EVERY WEEK, CHECK BACK SOON!  E-MAIL US

TO PLACE an ORDER or  WITH TECHNICAL QUESTIONS, PLEASE CALL 650-938-5511

FREQUENCY COUNTERS MICROWAVE, RF, UNIVERSAL, PULSE

MODEL DESCRIPTION Price US$

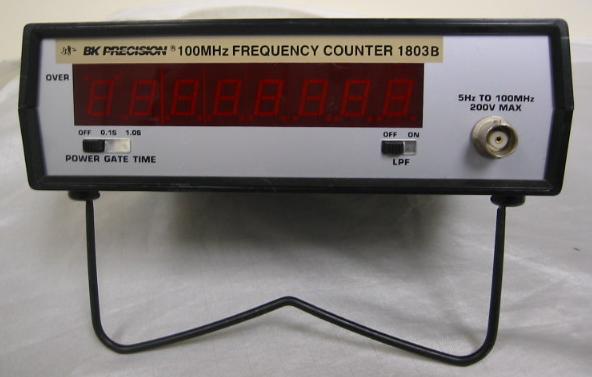

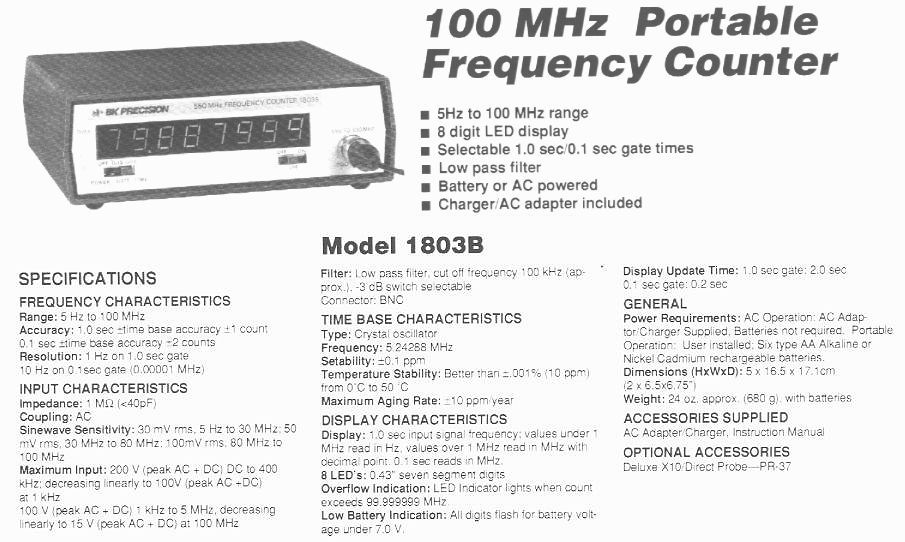

BK 1803B 100MHz handheld frequency counter. Rechargable or AA batt. and AC operation. specs Pic 75
EIP 351D 18 GHz, -30dB sensitivity, 3 bands from  20Hz -18GHz, 9 digit resolution 450
EIP 545A 18GHz , -30dB sensitivity 12 digit resolution.  Up to 100 meas/sec. pic 750
EIP 575 18 GHz Source Locking Microwave counter with GPIB Interface. Opt 9 (rear input) 950
Fluke 1953A Universal Counter. 100MHz, dual channel. Options: 5,14,15,16. Rack mount kit available 695
HP 5314A 100 MHz Universal Counter. Measure freq, period, ratio, time interval, totalize. 2 channels, 25mV sensitivity  Optional 001 High stability Time base ( <1 part in 10E7 per month +$40. pic 120
HP 5315B 100MHz Universal Programmable Counter. 7 digit resolution. Measure freq., period, ratio, time interval, totalize. 2 channels, 10mV sensitivity, x1 and x20 attenuator, adj. trigger level. pic 150
HP 5316A 1 GHz 3 channel Universal Programmable Counter. 8 digit resolution. Measure freq., period, ratio, time interval, totalize. 10mV sensitivity, x1 and x20 attenuator, adj. trigger level. Opt 001 390
HP 5316B 1 GHz 3 channel Universal Programmable Counter. 8 digit resolution. Measure freq., period, ratio, time interval, totalize. 10mV sensitivity, x1 and x20 attenuator, adj. trigger level. Opt 001 490
HP 5334B 100MHz 2 channel, 9 Digits of resolution. High stability time base (opt 010) Frequency, period, Rise/Fall time, Time interval, AC/DC voltage, Pulse width, Math functions, GPIB. pic  450
HP 5340A Microwave Frequency Counter 10Hz-18GHz. -35dBm max sensitivity. Opt 001 included. NIXIE display

750
HP 5355A Converter plug-in for the HP5345A counter. Extends frequency range to 40GHz

350
HP 5370A Universal time interval counter, 20 ps single-shot LSD, +- 100 ps accuracy achievable.

750
HP 5382A Frequency counter 10Hz-225MHz. 25mV sensitivity <10MHz, x1, x10, x100 attenuation

150
Tektronix CMC251 1.3GHz Universal Counter. Two inputs; 1Hz-100MHz, 80MHz-1.3GHz. 1ppm time base. LP filter. attenuator 250
TEK DC504A 100Mz Universal Counter Timer. Measure Freq., Period, Time, Events & more. For TM chassis 170
TEKTRONIX DC509A 135 MHz, Dual channel Universal Counter/Timer. 8 digit Display, 5 ps max resolution, Auto trigger, Probe compensation, A and B outputs, high stability Oven Time Base (opt 1). Works in TM 500/5000 chassis only. pict 170
  OUR INVENTORY CHANGES EVERY WEEK, CHECK BACK SOON!    E-MAIL US

  TO PLACE an ORDER or  WITH TECHNICAL QUESTIONS, PLEASE CALL 650-938-5511

MULTIMETERS,   ELECTROMETERS,   RF VOLTMETERS,   LCR,    MEGOHM METERS, CURRENT PROBES

Model Number GENERAL PURPOSE BENCH MULTIMETERS Price US$
FLUKE 45 Bench top DMM with 5.5 digit. Simultaneously display two types of measurments, Freq, Relative, dB. GPIB option   495
FLUKE 8010A Bench top DMM with 3.5 digit resolution.  Conductance measurments, True RMS. Rechargable batt. or AC   pic  95
FLUKE 8050A 4.5 Digit Bench DMM dBm, Conductance, True RMS pic   Battery option is available 150
FLUKE 8600A 4.5 Digit Bench DMM AC/DC V & A, Resistance to 20MOhm 95
FLUKE 8810A 5.5 digit DMM. Options 7, 9, 521 225
FLUKE 8840A 5.5 digit, System DMM. DC voltage/current  and Ohms only. add $250 for AC and GPIB opt.5/9 250
FLUKE 8842A 5.5 digit, System DMM. AC-DC voltage/current (opt 09) . Optional GPIB interface available 450
FLUKE 8506A 6.5 digit, System DMM.  with options 02A/09 (GPIB and Ohm's) 595
HP 3478A 5.5 digit resolution  DMM. DCV, ACV, Ohms, AC/DC Curent. GPIB, Auto/Manual      300
HP 3456A 6.5 digit resolution  DMM. DCV, ACV, Ohms, AC/DC Curent. GPIB, Auto/Manual. Math operations. Late s/n      395
Keithley 175 DMM with GPIB interface. V/A/Ohms, 4.5 digit resolution, dB, Relative, Logging, Auto/Man      350
Keithley 195A 5.5 digit DMM with GPIB interface. DC Volts, Amps and Ohms.      450
Keithley 619 Electrometer/DMM 5.5digit resolution, GPIB interface with 6193 module. 10fA-2A, 10mOhm-2TOhm, 1uV-200V      995
Philips PM2525 Digital multimeter 5.5 digit resolution. Proogramamble (GPIB). Also measures capacitance, freq. dB, V p-pk 595
TEK DM5110 Programmable DMM with GPIB Interface. 4.5digit, dBV, True RMS, Hold, Limit test. pic 350
TEK DM5120 6.5 digit Programmable DMM with GPIB Interface. 690
TEK DM5520 6.5 digit Programmable DMM with GPIB Interface. With TM502A chassi 795
RESISTANCE INDUCTANCE CAPACITANCE  MEASURMENT INSTRUMENTS

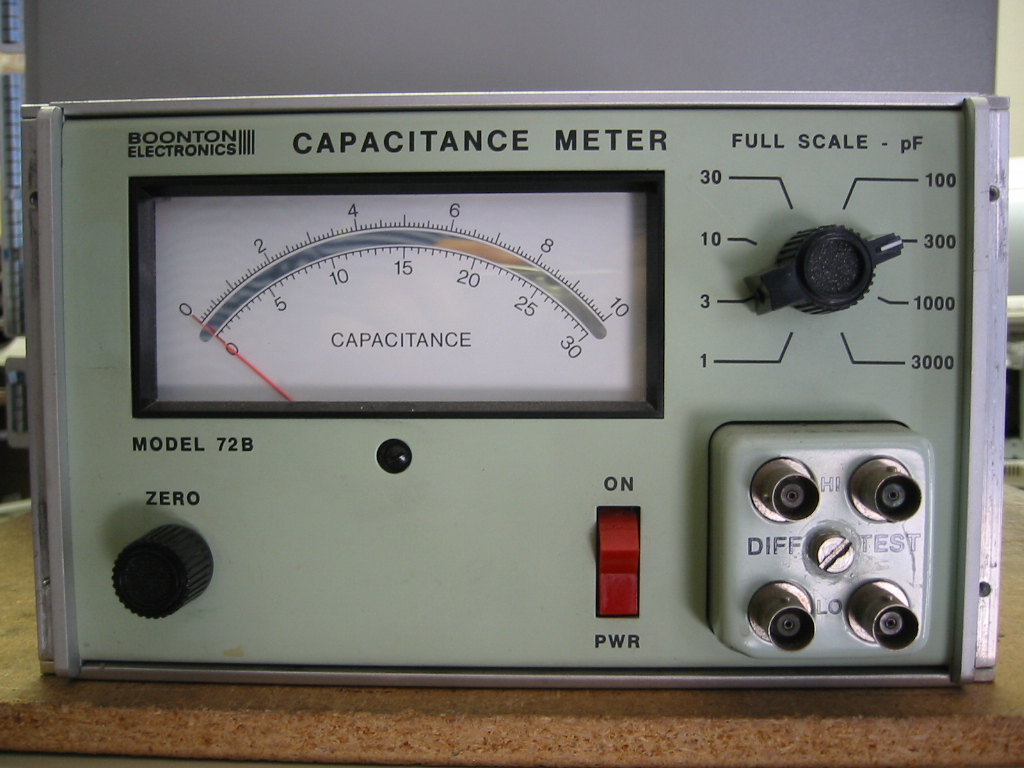

Boonton 72B Capacitance meter. 1 MHz test frequency. Differential test fixture to minimize stray capacitance. Eight ranges; 1-3000pF.  pic 650
EG&G 410 C-V plotter. 1 MHz capacitance meter with 100V dielectric tester. pic 1200
Hioki 2101 Megohm meter. Measure resistances up to 500 MOhm. 400V Test voltage. Remote control, Output terminals. Pass/Fail test mode with alarm. Pic 150
HP 4261A LCR meter. 1kHz max tst. freq.,3-digit display  L, C, R Dissipation factor. Opt 001/003. Pic SOLD 575
HP 4275A LCR meter. variable freq. 100Hz-10MHz, 3-digit display  L, C, R, Dissipation. GPIB interface. Pic 2500
HP 4140A Picoamp meter and Voltage source. Measure I, I-V and quasi-static C-V. Analog output (001), GPIB (101), 895
Hypatia 306 Milliohmmeter 0-199.9 mOhm and digital  2.5-100A AC Amp meter. 1% accuracy  pic 295
Keithley 595 C-V Meter for semiconductor devices capacitance characterization. Software for PC interface      2950
Megger ET3/2 Earth resistance tester. 3 or 4 wire test of ground resistance. Hand crank generator. With case pic        350
Polar 550 Milliohmmeter with short  locator. Measure resistance down to 1 mOhm or locate short circuits on any PCB board., Built-in current source. Ohmmeter 200 mOhm to 20 kOhm in 4 ranges.    195
Sencore LC75 Capacitance-Inductance analyzer with optional SCR250 (SCR tester). A-must troubleshooting tool. Measure capacitors w/o removing them from the circuit. Also test ESR, Yokes, Flybacks, Coaxial cables, Transistors, Diodes.   495
Sencore LC102 Capacitance-Inductance analyzer. Test capacitance leakage, ESR, Detect a short even of a single winding. Test voltage 1V-1000V. Test SCR's transmission lines (cables) for shorts. Pass-Fail testing with selected margin. pic 795
SPECIAL VOLTAGE CURRENT  MAGNETIC FIELD RF METERS and PROBES
3M 703 Electrostatic voltage meter. Measure static buildup on any surface up to 25kV. Pic 225
AEMC MR410 AC-DC Clamp-On Current probe. 600A DC, 400A AC, 10kHz BW, 1mV/A for any DMM  pic 85
Ailtech 7514 Noise figure meter. 10MHz-40GHz. Automatic or manual mode. +/-0.05dB accuracy. pic 525
Amprobe A50-1  Current transformer. Extend the range of your clamp-on AC current probe to 1200A.  With holster 75
BMI A600 AC current probe. 600A contunuous current capacity. For BMI power analyazers. 90
Clarke-Hess 263 Watt, Power Factor meter. Plus ACA & VAC. Digital. Requires current transformer 490
Eaton 7514 Noise figure meter. 10MHz-40GHz. Automatic or manual mode. +/-0.05dB accuracy. 525
Fluke 8921A RF Voltmeter. 10Hz -21MHz, Results in dB, dBm, Volt. Relative . 50-1200Ohm source matching. Pic 450
Fluke 80K-40 Hi Voltage probe. 40kV DC max. Works with any digital DMM. 1000:1 voltage divider 65
FW BELL 610 Gauss Meter & probe. AC/ DC fields.  Full scale from 1 to 3000 gauss. Differential probe available 490
FW BELL 620 Gauss Meter & probe. AC/DC fields  Full scale from 1 to 3000 gauss. Differential probe available 490
FW BELL 640 Incremental Gauss Meter & probe. AC/DC fields from 1 to 3000 gauss. Differential probe avaliable 490
FW BELL 1776 Clamp-on AC, DC and AC on DC Current meter. 10, 100, 1000 A range.  Peak hold. 5kHz BW, +/-1% DC or AC Accuracy. With 10A probe. pic 450
HP 400EL AC voltmeter. 10 Hz to 10MHz. 1mV to 300 V Full scale. 12 ranges, proportional DC output 150
HP 435B Power Meter. RF power measurments to 40GHz. Sensors & cable available separately.   pic 195
HP 428B DC Clip-on milliamp meter. Range: 0.1mA to 3A. Can be used as a current amplifier 395
HP 436A RF Power Meter. 4-digit LED displays watts, dBm, or dB(REL). Up to 50GHz, Power range of -70 to +35dBm(30W).  GPIB interface (opt 022) add $50. Power sensors available 250
HP 3400A True RMS AC Voltmeter. 10Hz -10MHz, 1mV to 300V in 12 ranges. DC output. 250
HP 5005B Signature Analyzer/Voltmeter/Frequency Counter/Ohm meter in one compact unit. Pic 450
HP 8405A Vector voltmeter. 1-1000MHz range, 1uV-1V input, PLL capab.Also used as sampling amplifier. Pic 550
Leader LMV-181A AC Millivoltmeter. 100uV-300V sensitivity, 5Hz-1MHz, Amplified signal output. dBV, dBM, V 150
Rhode Schwartz UPSF Video noise meter. 40 MHz BW, High resolution, filter functions 390
Rhode Schwartz UPSF2 Video noise meter. 40 MHz BW, Autoranging, High resolution, too many functions to list 690
SIMCO SS-2 Electrostatic voltage & Electrostatic field strength meter. Up to 200kV, 0-4000 kV/M. Small size 195
VEB RFT PSI 202 Sound level meter. Impulse, Fast, Slow response. 17 to 140dB, 20Hz to 40kHz. Vibration analisys with accelerometer. Filter port allow narrow band measurments.  Full specs 290
Yokogawa 321345A Insulation tester. Measure up to 2000 MOhm, 1000V test voltage.  Carrying case   pic 190
Yokogawa 2404-15 Insulation tester Megohm meter.Up to 2000 MOhm, 300VAC test voltage, Handcrank generator, no batt or AC power needed to do the testing. 2.9lb, Dim: 7"x4x4.  Carrying case  pic 190
Wavetek 8531 RF Power meter. Measure power up to 26GHz. GPIB, Analog and digital display. W/o sensor 250
OUR INVENTORY CHANGES EVERY WEEK, CHECK BACK SOON!   E-MAIL US


GENERATORS:   FUNCTION,   PULSE,    RF SIGNAL,   VIDEO,   DATA

MODEL FUNCTION GENERATORS Price US$
Agilent 33120A 15MHz Programmable Function/Arbitrary waveform generator. NEW IN A BOX! 1495
B&K Precision 4040 20MHz Sweep/Function Generator with Frequency counter. 20V p-pk output. Pic 250
Global Specialties PW2120 20MHz  Generator. AM/FM/Burst, RS-232 interface. Full specs & Pic  SOLD 490
HP 3311A 1MHz Function Generator. 600Ohm output, separate pulse output. 150
HP 3312A 12MHz Sweep/Function Generator. Internal  AM/FM modulation, dual outputs, Variable symmetry, Phase control 350
HP 3314A 20MHz Arbitrary waveform /Function Generator. Option 001 ( X3 output). SOLD 850
HP 3324A 21MHz Synthesized Programmable Sweep/Function Generator.1mHz to 21MHz @ +/-5PPM. Pic 950
HP 3325A 21 MHz Synthesized Programmable Sweep/Function , 1 mV to 10 V.   Option 001 available 850
HP 3325B 21MHz Synthesized Function generator. Programmable Sweep function, micro hertz resolution, 1 mV to 10 V output with 1mV res. 1650
HP 8165A 50MHz Pulse Function Generator: 1.000 mHz to 50.00 MHz. Sine, Square, Triangle, Pulse, Ramp,  Modes: CW, VCO, trigger, gate, FM and counted burst & optional Sweep (opt 2) 950
Stanford Research DS345 30MHz Synthesized Function/Arbitrary/ /Sweep generator. 1 µHz to 30.2 MHz, 1 µHz   resolution. Sine, square, ramp, triangle and noise, AM/FM/Burst/Phase. GPIB option. Info Pic 1250
Topward TFG 4613 12 MHz function generator, Sine, Square, Triangular, Pulse.  AM/FM/Sweep functions, dual output, Variable symmetry. Copy of the HP 3312A 250
TEK  FG503 Function Generator Plug-in, 0.1 Hz to 3 MHz; sine, square & triangle waveforms; VCF input. Newer serial number 175
TEK  FG504 Sweep-Function Generator, 0.001Hz  to 40MHz, Pulse function, 60dB attenuator, 15V p-pk max. With TM503 chassi 400
Wavetek 22 11 MHz  Frequency stabilized Sweep/Function Generator. Frequency accuracy is 0.09% over its 100 Hz to 11 MHz. LCD display, Lin/LOg sweep, 20V p-p, 6 functions, small size . Pic    450
Wavetek 75 Arbitrary waveform generator.  8192 point waveform length, 12bit vertical resolution.  RS-232. Wfm period 1uS -113.8 hours. Connecting two generators doubles waveform length. Pic   490
Wavetek 131 2MHz Function Gen. with Freq. control by ext.voltage, 50/600Ohm output, -60dB to +10dB    150
Wavetek 143 20MHz Function generator. 30 V pk-pk output, 80db attenuator, Pulse function.

290

Wavetek 145 20MHz Function/Pulse/Sweep gen. 30V pk-pk output, 80db attenuator. Ramp, addt'l TTL out

350

Wavetek 178 Synthesized Programmable Function generator. 0.1Hz-50MHz. GPIB. Opt 2 avail. Pic   995
Wavetek 180 2MHz Function Gen. with Sweep control. Standard waveforms plus var. symmentry   150
Wavetek 186 Phase lock generator. 0.0001Hz to 5MHz, phase lock to external freq., 30V p-pk output, int-ext AM/FM modul.   490
Wavetek 275 Function-Arbitrary waveform generator. 10mHz-12MHz,  Record length 8192 points (opt 4)   795
Wavetek 288 20MHz Synthesized Function Generator, 30V p-p output, FM/AM/Sweep/Phase Angle.   495

RF and  MICROWAVE SIGNAL GENERATORS
Eaton 384M 1MHz - 4GHz., Synthesized signal generator , +18.5dBm max. power, Digital sweep, FSK/ FM/ AM/Phase modulation. 1Hz max resolution. PC programmable. With optional Eaton 255 modulator.  Other plug-ins avail. Pic 1595
HP 4 Tone Gen. 800-900MHz, 0-30dBm output, 10kHz & 0.1dBm set point resolution, CW only.  Pic 450
HP 8350A Sweep oscillator mainframe. Works with HP86000 series plug-ins. HP11869A Adapter reqr'd 595
HP 8601A CW/Sweep Generator. 100kHz-110MHz in two ranges. -110dBm to +20dBm output. +/-1dB power accuracy. +/-0.25dB flatness over full range. Internal AM/FM modulation .   Pic 395
HP 8616A Microwave signal generator. 1.8-4.5GHz, 10mW max output (3mW>3GHz). Ext.modulation 395
HP 8642B Synthesized signal generator 0.1-2100 MHz. 1Hz resolution  From -140dBm to +16dBm. AM/FM/Phase/Pulse modulation. High spectral purity. With opt. 001 <10E-9/day aging rate 1900
HP 8656B Synthesized signal generator 0.1-990 MHz.  -127dBm to +13dBm output. Opt.2  pic 950
HP 8657A Synthesized signal generator 0.1-1047 MHz. From -127dBm to +13dBm output. opt 001 . Pic 1300
HP 8657B Synthesized signal generator 0.1-2060 MHz. From -127dBm to +13dBm output. IEEE-488 2950
HP 8620C RF Sweep generator. Accepts  plug-ins, that cover 10MHz to 22GHz range. 862XX plug-ins are listed below. PC interface  (GPIB) option is available.   pic 390
HP 8672A RF generator. 2-18GHz, Synthesized, Calibrated output -70dBm to 10dBM, GPIB interface  3750
HP 8640B Signal generator 0.5 to 512MHz, Output +19 to -145 dBm, built in freq. counter, AM/FM modulation., PLL lock capability, Options. 1/2/3 are available pic 750
HP 8690B Sweep generator. 10MHz to 40GHz with appropriate plug-in. Late model s/n 350
HP 86220A Sweep oscillator plug-in. Frequency range: 10MHz  to 1.3 GHz.. >10dBm output 395
HP 86222A Sweep oscillator plug-in. Frequency range: 10MHz  to 2.4GHz.. >10dBm output 495
HP 86240C Sweep Oscillator Plug-in. 3.6 to 8.6 GHz., +20dBm For HP8620 &  HP8350A/B with adapter 400
HP 86241A Sweep Oscillator Plug-in. 3.2 to 6.5 GHz, +8 dBm MAX level output, EXT. AM/FM mod. 350
HP 86242D Sweep Oscillator Plug-in. 5.9 to 9 GHz, 10 mV MAX LEVEL OUTPUT. For HP 8620 350
HP 86260A Sweep Oscillator Plug-in. 12.4 to 18.0 GHz, 10 mW MAX level output. Opt 001 500
HP 86260B Sweep Oscillator Plug-in. 10 to 15.5 GHz, 10 mW MAX level output.. Opt 001 ( int. leveling) 600
HP 86290B 18 GHz Sweep/CW Generator Plug-in . Frequency range: 2 GHz to 18.6 GHz continuos sweep; 10 dBm max leveled output; Power variation: +-0.9 dB internally leveled. pic 995
HP 86602A Sweep Oscillator Plug-in. 1 to 1300MHz. For HP 8660 Generator 750
Wavetek 1084 3500-4500 MHz Sweep/CW generator with digital readouts.+13dBm to -60dBm 450

PULSE GENERATORS   DATA  GENERATORS   SURGE GENERATORS
Bio-Rad Ecoli Pulser High voltage pulse generator. 200V-2500V in 10V increment 125A max. peak current Output waveform decaying exponential RC time constant (R is a discharge load resistance) Designed for electroporation of samples  pic 700
ELGEN-1000 DC-2MHz, 170V p-pk output. 10mA max. High voltage pulse generator. 1950
E-H 129 500 MHz pulse gen. Rep. rate from 100kHz to 500MHz, 6V max output, Ext. trigger input   pic 390
HP 8007B 100MHz, max repetition rate. Rise/Fall time <2nS-250uS, DC offset, TTL, ECL, pos/neg output  350
HP 8011A 20MHz,  Period: 50ns to 10s Pulse width: 25ns to 8 100ms. Pulse burst option 0-9999 pulse per cycle  + $100   290
HP 8015A 50MHz. Two outputs with independent amplitude control, adjustable transition times. 1-9999 pulses burst option 395
HP 8018A 50MHz Serial Data/PRBS Generator, 2048 bit, dual channel memory, Variable word and pattern lenght, TTL, ECL, CMOS compatible, Programmable, prbs and mixed data.   HPIB interface. 250
HP 8161A 100MHz programmable pulse gen. 6nS transition time, 10V into 50Ohm. Optional 2nd output 2950
HP 8175A Digital data generator. 32 TTL/CMOS channels. All pods and flying lead probes included. pic 1495
Interface Technology RS-690 250MHz digital word generator. 64 channels, up to 16kB of data per chan. Min pulse width 4nS. Options included: Floppy disk, ECL pods, Variable current data pod (50Ohm) pic  pic 1250
Datapulse 201 Data-Pulse generator. Generate 16 bit serial data streams up to 10 MHz. Adjustable amplitude 0-10V and offset: +/-10V. Manual or Auto trigger. Sync clock outputs. requires external drive signal sinewave ( 1Vrms) or squarewave ( +/-0.5V). pic 150
LeCroy 9210 Programmable pulse generator mainframe. 300MHz repetition rate. $700 discount  with plug-in purchase. pic  2500
LeCroy 9214 Pulse generator plug-in. 300MHz repetition rate. 300pS rise time, 5V into 50Ohm  1950
TEK PG501 50 MHz Pulse generator. <20nS to 200mS period, <10nS to 100mS pulse duration . +/-5V output into 50 ohms, Square wave mode, <3nS Rise time, Ext. trigger In/Out  Dual adjustable complim. outputs. pic 190
TEK PG502 10Hz-250MHz Pulse generator, 1nS rise time, +/-5V output (5V p-pk max). Single pulse mode. Pic 250
TEK PG505 High voltage pulse generator. 1MHz repet. rate. 80V pk-pk into 4kOhm, Variable Transition 350
TEK PG508 Dual output pulse generator. 50MHz repetition rate, adjustable transition time, 20V p-pk max 295
TEK TG501 Time mark generator for calibrating any oscilloscope time base. Optional 5MHz time base. 395
Wavetek 680-3 100 MHz Pulse Generator Modules. Add channels to your Wavetek 869 modular pulse gen. 190

SINEWAVE GENERATORS
FLUKE 6160B Synthesized Frequency generator. 1-160MHz. 0.1Hz resolution. 2x10E-9 time base (option 2) 350
HP 200CD Sinewave oscillator 0.1Hz-600kHz,  low distortion 600Ohm output 175
HP 651A Sinewave oscillator 10Hz-10MHz,  low distortion. 60dB attenuator. Late serial number 175
HP 3335A Synthesized/Leve Generator 200Hz-80MHz. 0.1dB output accuracy, Sweep, GPIB. 1190
HP 3336B Synthesized/Level generator. 10Hz-21MHz, with optional Attenuator (0.05dBm accy.) 850
TEKTRONIX AF501 Sinewave Oscillator with  Bandpas Filter and Amplifier. All 3  in one instrument. Great for testing analog designs for noise immunity . 450
TEKTRONIX SG502 Oscillator, 5 Hz to 500 kHz Sine and Square Waves, Low distortion Sine Wave, 5 V RMS open circuit-600 Ohm source, 0-40 dB output variable plus 0-70 dB in 10 dB steps.

150

Tektronix SG503 250 MHz leveled sinewave generator with Freq. counter.  Requires TM 500 chassi. Newer s/n   495
Tektronix SG504 1024 MHz sinewave generator w/o output head.   Requires TM 500 chassi.   395

VIDEO,  NOISE and  SPECIAL  GENERATORS
Agilent E4838A Data generator front end plug-in. New factory sealed units. 450
Andy  Gish 255 ESD generator. 0-25kV, Discharge Event counter, Pulse rate: 0.5,1,5 pulse/sec  Pic 1250
CHROMA 2250 Video Signal Generator. 250MHz pixel speed. 2048x2048,  RS-232,  Info     Pic 1450
Haefley PSD25B ESD discharge generator DC, 2Hz, 20Hz. IEC1000-4-2, EN61000-4-2. Accesories incl. pic 1950
HP 59308A GPIB timing generator. Test GPIB interface timing accuracy 490
HP 16520A Data pattern generator for HP 16500 series analyzers. Complete with accesories. Expandable 490
HP 16521A Data pattern generator for HP 16500 series analyzers. Complete with accesories. 490
HP 16522A Data pattern/Vector generator for HP 16500 series analyzers. Pods & Cables included. 1250
G-R 1390B Random noise generator, 3  ranges: 20kHz, 500kHz, 5MHz, 5V max output, 5 decades of attenuation. Pink noise  Pic 190
Leader LCG-400 Video Signal Generator NTSC. Sound, Variable Sync option, Gen-Lock, Optional Multiburst module, TV modulator  Pic 495
Leader LCG-409 Video Signal Generator NTSC. Composite & Channels 2 to 86, Sound, RGB, Battery/AC pwr. pic 395
Noise Lab ESS-625S Electrostatic Discharge Simulator. 0-25kV. Selectable polarity. Pic 1750
Quantum Data 8701E 285 Mhz analog video generator. Supports all forms of EIA composite sync. With. ACV 285 unit 350
Schaffner NSG222 Interference generator. For use with Schaffener mainframe chassi only 450
SRS FS700 Loran C Standard. 10MHz sinewave with Cesium beam accuracy; 10E-12 long term stability 1890
Tektronix  TSG130  Miltiformat video test generator with audio outputs. 695
Tektronix  TSG170 Video test generator. 15 test patterns. Digital genlock. NTSC format 950
Tek TSG 170 Video test generator.  15 test patterns. Digital genlock. NTSC format 950
Tektronix  1910 Video test generator/ Inserter. Studio, transmitter abd transmission test signals. 10-Bit signal generation.  1350
Tek VITS 100 Video test generator/ Inserter. NTC 7, FCC, and VIR Signals. FCC composite, multiburst  695
Tek VITS100 Video test generator/ Inserter. NTC 7, FCC, and VIR Signals. FCC composite, multiburst  695
Tek VITS 200 Generator/Inserter NTC7, FCC, VIRS, and GCR Signals Cable Multiburst and Sweep Signals. 995
Tek VITS200 Generator/Inserter NTC7, FCC, VIRS, and GCR Signals Cable Multiburst and Sweep Signals. 995
Velonex 350 High Power Pulse generator. 2000V into 200Ohm max. Optional plug-ins available. Pic 2500
Velonex 570 High Power Pulse and Burst generator. 2000V into 200Ohm max. Adjustable timing  Pic 3900
Velonex 587 High Power Voltage and Current Surge generator. 6000V max. 3 types of pulses.  Pic 5950
OUR INVENTORY CHANGES EVERY WEEK, CHECK BACK SOON!   E-MAIL US

MISCELLANEOUS  EQUIPMENT

MODEL AMPLIFIERS Price US$
Agilent HMMC-5618 MMIC Amplifier. 6 to 20GHz. SMT package. call
HP 6824A Amplifier/Power Supply +/-50V  @ 1A, DC-10kHz, Voltage gain: 0-10X, 0.1%THD. pic 590
HP 8447A Dual channel amplifier (opt 001) with 400MHz bandwith. 20dB gain. 50Ohm input/output 490
HP 8447F Dual channel 9kHz-1300MHz amplifier. 25dB gain. Opt H64 ("N" type connectors) pic 1290
Hughes 1077H11 TWT Amplifier 18  to 26.5 GHz,  1 Watt output. Full specs are available. call
Hughes 1277H03F000 TWT Amplifier 8 to 12.4 GHz,  20 Watt output. Full specs are available. 2900
Hughes 8010H15 TWT Amplifier 8  to 18 GHz,  10 Watt output. Fulls specs are available. 4500
Miteq AFS2-00010600 Microwave amplifier. 0.1-6 GHz rated, 11GHz tested. +10dBm output. New units. Info Plot 395
TEKTRONIX AF501 Bandpas Filter to 35kHz, Sinewave Oscillator to35kHz, Amplifier to 50kHz (1-500 gain). Perfect for audio or vibration signal analysis, as a manually swept spectrum analyzer 295
TEKTRONIX M41A2 Thermocouple amplifier. For J type T/C. 10 input channels. Cold junction compensation. Opto isolated

50

Wavetek 753A Programmable High pass & Low pass filter. Rolloff: 115dB/Octave, High res., GPIB port

650
Wiltron 60-B-21402 uWave amplifier.  13-20GHz, Gain: 20dB, Power: 100mWt, 6.5-13GHz gain 15dB

450
Wiltron 60-C-21372 uWave amplifier.  13-20GHz, Gain: 20dB, Power: 100mWt, 6.5-13GHz gain 15dB

450

ATTENUATORS
3M 19XT Photodyne 19XT-062T Handheld single mode optical attenuator (FC/PC). Pic   150
Agilent 8493A Fixed value DC-12.5GHz attenuator. SMA connectors. Available values: 3,6,10,20,30dB   45
Agilent 8494G Programmable step attenuator, DC-4 GHz, 11dB, SMA connectors. 5VDC. Save $350!   690
Agilent 8495G Programmable step attenuator, DC-4 GHz, 70dB, SMA connectors.   550
Agilent 8495H Programmable step attenuator, DC-18 GHz, 70dB, SMA connectors. Save $300!   750
Agilent 33326-60005 Programmable step attenuator, DC-50GHz, 70dB, 15V, 2.4mm connect. Save $1175 Pic 1795
HP 350D DC-1MHz, 110dB step attenuator with 1dB step. Banana jack input & output   195
HP 8120-2703 Control cable for the Agilent 11713A attenuator driver unit.     75
Wiltron 4612K Programmable step attenuator DC-40GHz, 70dB   850

DATA ACQUISITION and CONTROL
Agilent 10833A GPIB/IEEE-488 Cable. MSRP $95. 25
Agilent 10833B GPIB/IEEE-488 Cable, 2 meter length (6ft) 25
Agilent 10833C GPIB/IEEE-488 Cable, 4 meter length (13ft) 35
Agilent N2260A Relay card for Agilent data acquisition systems. Connector block included 390
Agilent N2262A Multiplexer card for Agilent data acquisition systems. Connector block included 590
Agilent N2266A Multiplexer board for Agilent data acquisition systems. Connector block included 390
Agilent 82340A GPIB-16 bit board for PC. 190
HP E1301A VXI B Mainframe with optional E1326B DVM. Floppy and Hard drives. 650
HP E1330B Multiplexer card for VXI systems with terminal blocks. 170
HP E1343A High voltage 16ch multiplexer card for the VXI systems. With terminal blocks. 590
HP E1352A Multiplexer card for VXI systems; E1301B, E1302A 295
HP E1353A Thermocouple Multiplexer card.16 input channels. For VXI chassis. With terminal blocks 490
HP E1364A 16Ch Form C switch. For VXI systems 150
HP 85A Computer with built in display and printer. With HP 82937A ( HPIB interface) 390
HP 3488A Switch/Control unit with GPIB interface. Up to 50 channels. DC to 26.5GHz.  Cards are available separately see HP 444XX p/n below 150
HP 3495A Data aquisition scanner. GPIB interface (opt 100). Cards are available 295
HP 3497A Data aquisition unit with DMM and Current source (opt 001). Newer serial number 395
HP 3852A Data aquisition and Control unit. Optional 1MB memory. Latest s/n 450
HP 34907A Multifunction I/O module for the HP 34970A. 195
HP 44421A Data acquisition board (20 channel) with terminal block 120
HP 44422A T/C interface card with terminal block for HP3497 data acquisition system 75
HP 44428A Actuator interface card with terminal block for HP3497 data acquisition system 120
HP 44429A Dual D/A interface card with terminal block for HP3497 data acquisition system 120
HP 44470A Multiplexer card with connector block  for HP 3488A switch unit 190
HP 44472A Coaxial multiplexer card for the HP3488A switch unit. 190
HP 44473A Relay multiplexer card for the HP3488A switch unit. New in a box 190
HP 44474A Digital I/O card for the HP3488A switch unit. 190
HP 44476A RF switch card for the HP3488A switch unit. Same as 44476A but w/o relays. NEW 190
HP 44705F Relay multiplexer card for the HP3852A and 3853A. Newer serial number 275
HP 44710A T/C interface card. 20 channels. for the HP3852A and 3853A. Newer serial number 650
HP 44724A 16 channel digital output card for the HP3852A and 3853A. Newer serial number 195
HP 44726A DAC module for the HP3852A and 3853A. Newer serial number 195
HP 44729A 20 Channel multiplexer card for the HP3852A, 3853A. Newer serial number 295
HP 44788A HPIB controller for HP 3582A and HP 3583A 295
HP 44788A HPIB controller for HP 3582A and HP 3583A 295
HP 59301A ASCII to Parallel converter. Permits control of many older HP instruments via GPIB interface 125
HP 59303A D/A conveter with GPIB interface. 195
HP 59306A Relay actuator. Control six form-C relays by  pushbuttons or via GPIB interface 95
HP 59307A VHF Switch. Dual Single pole 4 throw. GPIB or pushbutton.  DC-500MHz, 50 Ohm  250
HP 59313A A/D converter with GPIB interface. 4 Chan. +/-10V span. Up to 200 conversions/s 150
HP59501A Power supply programmer. Control power supplies with analog programming capabilities with a PC via GPIB interface. Isolated.  Range +/-1V or +/-10V. 1mV/10mV resolution. LabView supported. 125
HP 61020A Dual VHF Multiplexer, 300MHz BW, Two of 4 single ended with 1 single-ended common. 85
Keithley AIM7 T/C Interface board for the Keithley 575 system 250
Keithley 706 Scanner mainframe with 10 card capacity. GPIB, RTC 350
Keithley 7052 Relay matrix card 4x5 form factor. For Keithley 700, 7000 series mainframes 95
Keithley 7054 High voltage Relay matrix. For Keithley 705, 706  mainframes 150
Keithley 7055 Relay matrix card  for Keithley 705, 706  mainframes 95
Keithley 7062 RF Relay switching card. For Keithley 705, 706  mainframes 150
Keithley 7071-4 Switching matrix card for Keithley 707. Dual 4x12 matrix with 5MHz BW.  350
Keithley 7169A Relay matrix card for Keithley 700, 7000 series mainframes 95
HP 37203A HPIB Range extender. Operate GPIB or IEEE-488 instruments at greater distances. 60
NI GPIB-PCI National Instruments GPIB board for a PC with a PCI-slot. Fast data rate. Save $400 350
NI GPIB-TNT National Instruments GPIB board for a PC. 16 bit.  For any PC with ISA slot 100
NI SB-GPIB-TNT National Instruments GPIB board for SB bus 395
NI SCXI-1163R 32 channel optoislated solid state relay module 395
NI SCXI-1102B 32 channel amplifier board. 200Hz BW. 333 kS/s maximum sampling rate 950
NI SC-2345 Shielded Carrier for up to 20 SCC modules. With Interface cable. Save 40% of MSRP 200
NI SCB-68 Shielded I/O Connector Block for DAQ Devices. Save 50% off MSRP 150
NI SB-GPIB-TNT National Instruments GPIB board for SB bus 150
NI Labview 4.0 National Instruments Labview Development System version 4.0 and 4.0 Drivers CD 495
NI VXI-MXI-2 National Instruments VXI CPU card and Interface Cable. BRAND NEW with Software. 890
Noise Lab VDS-220B Line voltage dropout simulator. Test any electrical device for behavior under abnormal line condition. 120-240VAC line voltage, 20A. Vary dropout amplitude, number of amplitude drops per cycle and number of cycles.  Pic 950
Tektronix SI5010 Programmable scanner for the TEK TM5000 series chassis. 16 channels. BNC connector 150

TEMPERATURE, PRESSURE, HUMIDITY, LIGHT, SOUND
Bruel & Kjaer 2230 Sound level meter. Professional quality hand-held instrument. Microphone is not included 425
Dickson THDx Temperature/Humidity/Dew point 7 day recorder. Digital display, Min/Max. With extra pens 195
Fluke 2190A Thermometer. 5 digits, 0.1deg resolution, accepts most types of thermocouples C/F selection. Expand to 20 input channels with Fluke 2300A  scanner  and obtain hardcopy printout with Fluke 2030A printer. Pic 300
Fluke 2030A Programmable printer for use with Fluke PTI equipped instruments. Attach up to  9 instruments simult. Pic 200
Fluke 2393A Temperature Logging System. Consists of Thermocouple thermometer with 20 input channel scanner and programmable printer. Automatic or manual scan mode, time stamp, interval, y=ax+b math, limits. Pic 650
Fluke Y2003 Thermocople calibrator. AC or Battery operation 350
Honeywell 612X9 Circular Humidity & Temperature recorder. 1 Week chart, no AC or Batteries required  Pic 190
Honeywell 31061222 Circular Humidity & Temperature recorder. 1 Week chart, Runs on One "D" cell 190
HP 18125A Calibration Module for the HP 2804A Quartz Thermometer   250
Keithley 740 Scanning Thermometer, 9 ch., 81 ch max. GPIB, J/K/T/E/R/S/B/mV   690
Metrosonic CL304 Acoustical calibrator. 102dB @ 1000Hz. For testing for ANSI S1.40-1984 standard   190
Omega DP462T Multichannel thermometer. Six T/C inputs. Current list price $348.  Info   125
Sensym ST2500G1 Pressure transducer, 0 to 500 psi. Linear output 1 to 6 VDC,  0.5% Accy, Power req. 12-30 VDC, SS construction compatible with most hostile environments. Proof pressure: 600 psi, Burst pressure: 2500 psi. New units in original packaging. Retail price $200.  pic 50
Signet P82140-3 Resistivity Controller, Panel mount, 1/2 DIN size. Never used   170

HIPOT, SAFETY, GROUND, DIELECTRIC WITHSTANDING TESTERS
Associated Research 4025 AC hipot tester. 3000VAC.  Acceptable for UL compliance testing. Pic 395
Compliance Design ESD2000 25kV Charge pump for EU ESD compliance testing. PROBES ARE NOT INCLUDED Pic     390
Hipotronics HDB-6 DC Hipot tester, 5000V max. Failure alarm when arcing is detected. Pic 390
Hipotronics HD115 AC/DC hipot tester. 12kV AC, 15kV DC. 5mA test current. Specs SOLD 1295
IMCS 2400C Electrostatic Discharge (ESD) tester. Designed to test IC's with up to 9kV per Mil-Std-883, Method 3015 for Human Body Model current waveforms Pic  1950
Kikusui TOS5030 AC Hypot tester 0-3kV AC, 0-10mA, remote On/Off switch. Warning light. NEW EQUIPMENT  Pic 695
Kikusui TOS8850 Hypot/Insulation tester 0-5kV AC, 0-120mA, 2000MOhm resistance test at 500/1000V. Pic 1495
ROD-L M25 Ground fault tester. Test for up to 25A ground leak current. Test for Ground continuity for UL, CS, VDE standards.Pic 650
ROD-L M30 Ground fault tester. Test for up to 30A ground leak current. Test for Ground continuity for UL, CS, VDE standards.Pic 750
ROD-L M100AVS5-2.8-40 AC Hipot Tester. 2.8 kV max, up to 40 mA. Test for dielectric voltage-withstand for CS, VDE and UL. Pic 750
ROD-L M100DC DC Hipot Tester. 5.5 kV. Test for dielectric voltage-withstand for CS, VDE and UL. Pic 750
ROD-L M988 GPIB controller for the ROD-L  hypot and ground fault testers. 650

MICROWAVE COMPONENTS ( also see  ATTENUATORS )
Anritsu 34NFN50 N type precision connector Male to Male. New equipment!       50
Anritsu 62NF75 VSWR Bridge 10MHz-1GHz, 75Ohm. New equipment!     350
Anritsu 73N75 RF Detector. 100kHz-2GHz, Negative polarity. N type male connector. New condition     175
Anritsu K210 K type presision connector. DC-40GHz,  Female to Female. New equipment.       95
Anritsu K232B K type precision connector DC-40GHz,  Female to Female, Panel mount. New equipment     120
Anritsu NC346B Noise Source 0.01-18GHz. 28V, SMA connector.   1200
Anritsu 3740A-Q Transmission Test set. For Anritsu/Wiltron network analyzers. Q- band 33-50GHz. Pic   3500
Anritsu 3740A-W Transmission Test set. For Antritsu/Wiltron netwok analyzers. W-band 75-110GHz. Pic   4950
Anritsu 3741A-Q Transmission/Reflection  Test set. For Anritsu/Wiltron network analyzers. Q- band 33-50GHz. Pic   7500
Anritsu 3741A-W Transmission/Reflection  Test set. For Antritsu/Wiltron netwok analyzers. W-band 75-110GHz. Pic   9500
Anritsu MA4610A RF Sensor. -50dBm to +10dBm, 50Ohm, 500MHz.     325
Agilent 5364A Microwave Mixer/Detector. 2-18GHz built in 70dB attenuator. pic     995
Agilent 8762B Coaxial switch DC-18GHz. SPST. New in a box.     195
Agilent 85902A Burst Carrier Trigger. NEW UNIT. Perform accurate RF power measurments with spectrum analyzer     350
Anritsu 3740A-Q Transmission/Reflection Test set. From 33-50GHz. Unused condition   7500
Gigatronics 80601A RF power sensor. 10MHz-18GHz, 20dBm max, 50Ohm. With cable    750
DMT M6-413G38T Microwave switch DC-18GHz, SP3T, SP6T. Mil. spec. New unit. Specs     350
HP J486A Thermistor mount power sensor. For the HP432 RF power meter     185
HP X486A Thermistor mount power sensor. For the HP432 RF power meter     185
HP 3717A 70MHz Modulator/Demodulator. Available options: 16, 17, 18, H31, H32  or 004, 031, 032, 033, 034, 035, 100     950
HP 5344A Microwave source synchronizer. 0.5-18GHz. 1Hz resolution add PLL lock to the HP8350X     495
HP 8470B Crystal detector 0.01 to 18GHz, negative output, "N" connector      180
HP 8474C Diode detector 0.01 to 33GHz, standard negative output, SMA conn.  Agilent list  $856     295
HP 8502A Transmission Reflection Test Set. 4MHz-2.6GHz (opt H26). Built in 70dB attenuator. pic     750
HP 8762A Microwave switch. 4 GHz BW, SPDT, SMA. 24VDC. Same as HP 33311A       75
HP 10608B Transistor test fixture. For microwave transistors parameter analysys. pic     350
HP 11664A Detector for  the HP8755C, 8756A, 8757X scalar network analyzers. 10MHz-18GHz. SOLD     300
HP 11665A Microwave Modulator. On/Off type. Designed to be driven directly by the HP8755 plug-in     125
HP 11666A Reflectometer bridge for use with HP8756/57 Scalar network analyzers.     595
HP 11691D Directional coupler 2-18GHz, 22dB coupling, dual.  Option 001     350
HP 11692D Directional coupler 2-18GHz, 22dB coupling, dual.  Opt H35 ("N" connectors)   350
HP 11945A Close Field probe set. Covers 9kHz to1GHz band. With HP8447F amp, SMA cables and carrying case. pic 2650
HP 11970A Harmonic mixer 26.5GHz-40GHz. Waveguide to SMA.        950
HP 33311A Microwave switch. 4 GHz BW, SPDT, SMA. 24VDC. Same as HP 8762A Cat. price: $557     75
HP 33312B Microwave switch. 18GHz, 3 Port, SMA connectors. 5V or 24V option    250
HP 33313B Microwave switch. 18GHz, 4 Port, SMA connectors.    250
Hughes 45113H-1000 Circular isolator. 40-60GHz range. Condition: New    250
Integra DWM1800 Dual wavemeter with Tunable filter. 1-18GHz range   750
Minicircuits ERA-4 Microwave Amplifier DC-4GHz, 11dB at 2GHz min, 17dBm, 100pcs in factory package 195
Narda 3122 Directional Coupler 1-18GHz, N conn. in & out, SMA detector connect 250
Narda 23509 Directional coupler 7-18GHz, -10dB, APC-7 connectors 150
Pacific Measurments 15176 Microwave Detector Probe. 10MHz-18GHz. For use with scalar network analyzers      190
Spacek Labs U-3X Frequency multiplier. Tripple the output freq. of any   signal generator up to 60GHz. New!      590
Wavetek 15176 Microwave Detector Probe. 10MHz-18GHz. For use with scalar network analy
