SPECTRUM ANALYZERS,   LOGIC ANALYZERS,  SIGNAL ANALYZERS, NETWORK ANALYZERS

Model Number SPECTRUM ANALYZERS GENERAL PURPOSE Price US$
Advantest R3261D 9kHz-3.6GHz with 1Hz maximum resolution. Specialized signal measurment modes including RF power

3950
HP 141T Spectrum Analyzer Mainframe. Storage mode 100% operational.  pic

450

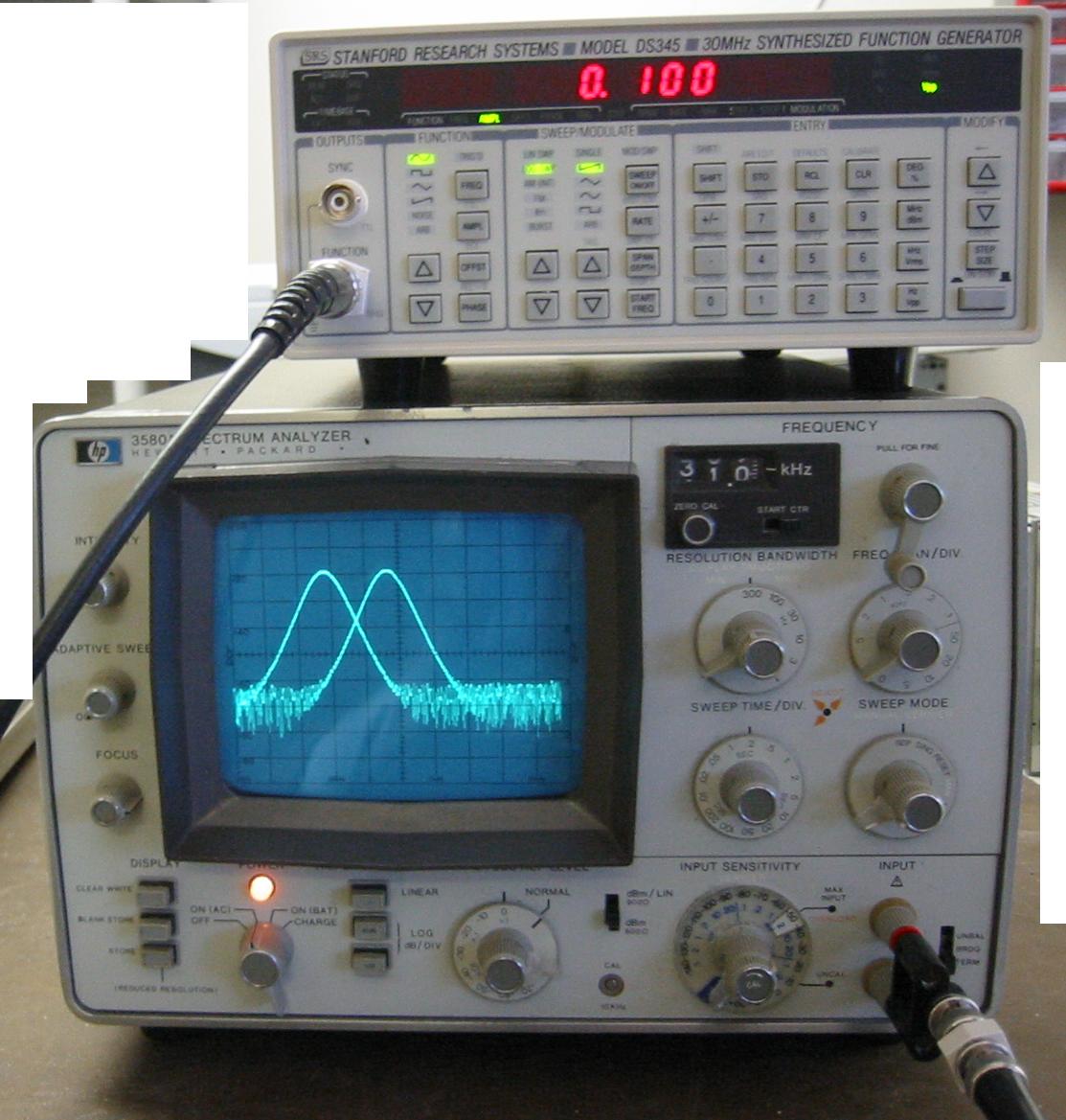

HP 3580A 5Hz -50kHz. 100nV to 20V amplitude, 80dB dynamic range. pic    Rechargeable batt. +$150

650

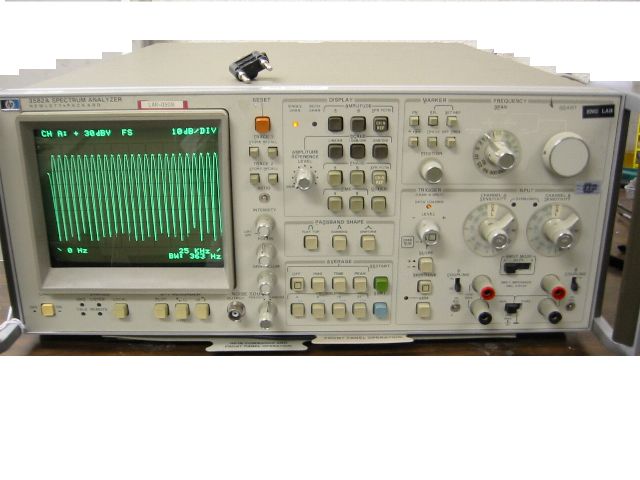

HP 3582A 0.02Hz - 25.6kHz.  Dual channel,+30dBV to -120 dBV dynamic range. Frequency: 1Hz to 25kHz. Frequency accuracy: 0.003%. Automatic measurements under PC control.  pic

1495

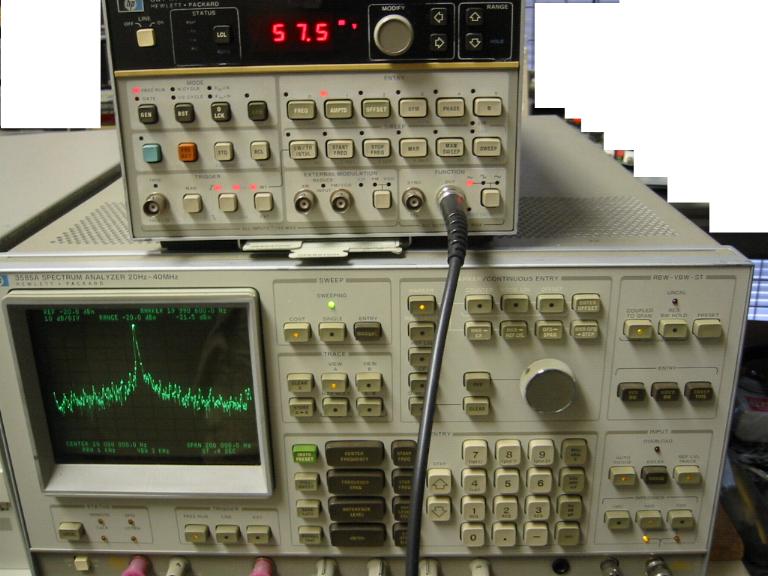

HP 3585A 20Hz-40MHz with 0.1Hz resolution. Dual channel, Tracking generator, 80dB dynamic range, 3Hz resolution BW. sold

1250
HP 8552B IF section for use with 8553/54/55/56 RF section. 20Hz-300kHz resolution. SOLD

    450

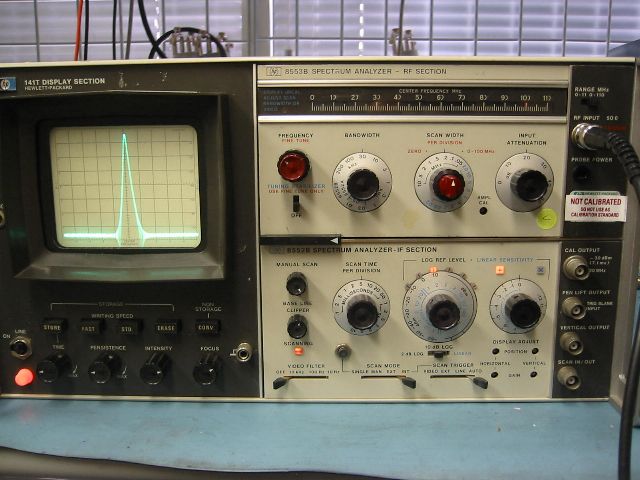

HP 8553B 1kHz-110MHz RF section  pic Shown with optional display unit and IF section. SOLD

    450
HP 8555A 10MHz-18GHz RF  section pic Shown with optional display unit & IF section. Complete $1200

    650
HP 8558B 10kHz-1.5GHz, 70dB attenuator, -60dBm sensitivity. Add HP 182 Large screen display for $100

    1250
HP 8559B 10MHz-21GHz, 1kHz resolution,  Amplitude range: -111 to +30dBm, Dual trace with storage (HP853A) and GPIB

    2500
HP 8561A 1kHz -6.5GHz, Portable spectrum analyzer. 110Hz min resolution. GPIB, 121dBm noise floor. pic

    5500
HP 8568B 100Hz-1.5GHz Synthesized accuracy delivers 10Hz resolution. Memory. RF SECTION only

    1850
HP 8569A 10kHz-22GHz,  Signal storage, memory, GPIB output to printer or plotter.

    3500

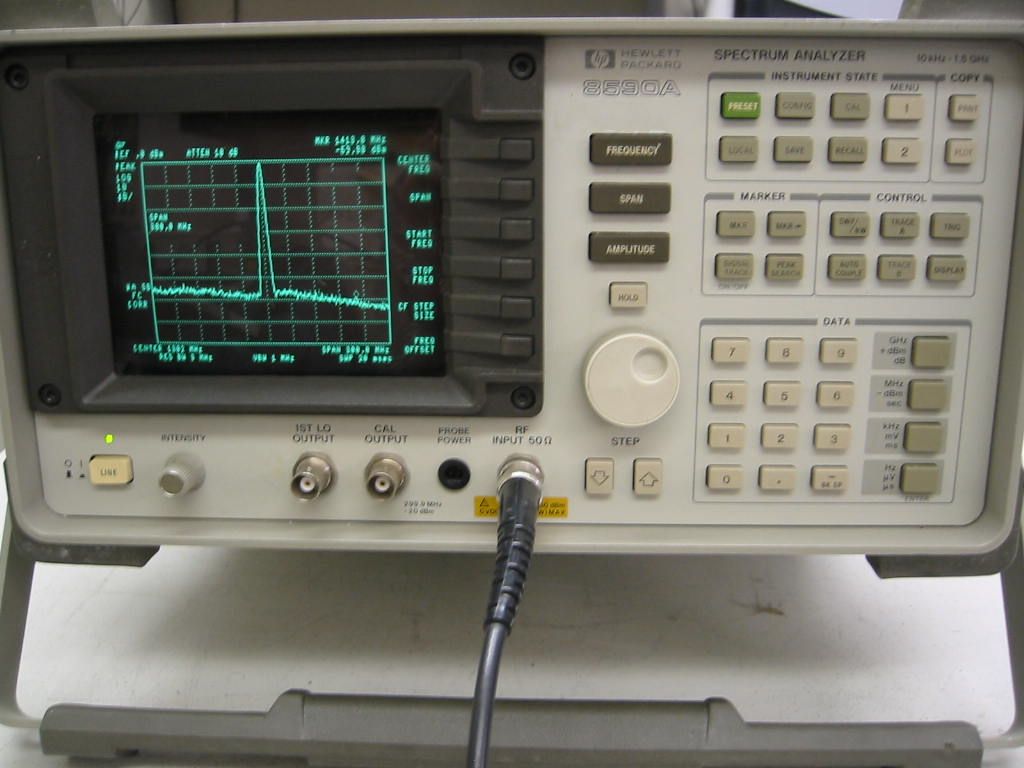

HP 8590A 10kHz -1.5GHz, Portable spectrum analyzer. 1 kHz resolution, opt 021 ( GPIB). New CRT pic

    2200

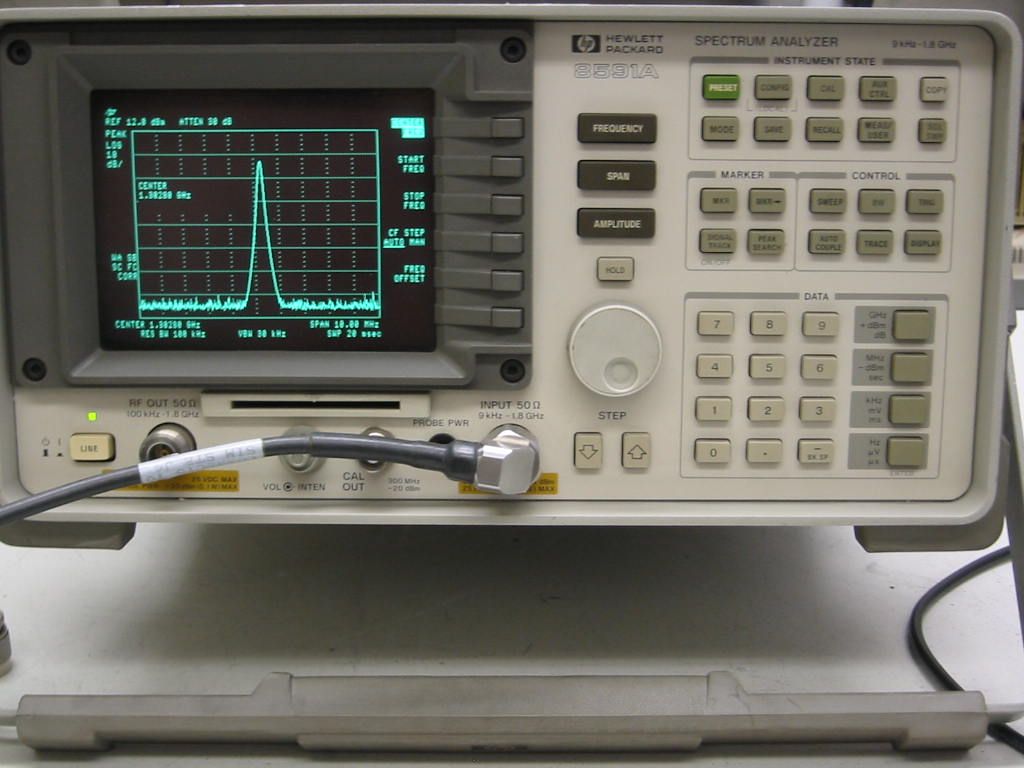

HP 8591A 10kHz -1.8GHz, Portable spectrum analyzer. 1kHz resolution, 4 digit accuracy. pic

    2950
HP 8591A 10kHz -1.8GHz, Tracking generator (opt 010), AM/FM Demodulator. with opt102 & 21.  pic

    4950
HP 8595E 9kHz -6.5GHz Spectrum analyzer. 30Hz resolution. Available options: 021, 041, 140

    5950
HP 70904A RF Section for the HP 70000 series Spectrum analyzer. 100Hz-2.9GHz

       750

        AUDIO SPECTRUM AND DISTORTION ANALYZERS
HP 334A Distortion Analyzer. 5Hz-600kHz. -60dB sensitivity, 300V voltmeter, detector output, filter function.  pic  SOLD

395
HP 3580A Spectrum Analyzer. 5Hz-50kHz. 100nV to 20V amplitude, 80dB dynamic range. Batt avail. pic

750
HP 3582A Spectrum Analyzer. Dual channel, 0.02Hz- 25.6 kHz. +30dBV to -120 dBV dynamic range. Frequency spans from 1Hz to 25kHz. Frequency accuracy: 0.003%.   pic

1495
HP 8903A Audio signal analyzer. SINAD, amplitude measurments to 110kHz. Autoranging 850
Sound Tech 1700A Distortion analyzer & Generator in one instrument. 100kHz, THD, RMS Volts, Ratio   pic 795
TEK  AA5001 Programmable Audio distortion analyzer.10Hz-100kHz. THD, THD+Noise, IMD, RMS Voltage measurments. GPIB 475

LOGIC ANALYZERS and DIGITAL SIGNAL ANALYZERS
Agilent 1670D 136 channel, 100MHz/250MHz, Deep memory logic analyzer. 1MB per channel Hard drive, Ethernet port pic 2500
Agilent 1670G 136 channel, 500MHz Timing/ 150MHz State, 128kB/chan, 3.5nS setup/hold. pic 2950
Agilent 1672E 68 channel, 100MHz/250MHz, Deep memory logic analyzer. 1MB per channel  Hard drive, Ethernet port  pic 1500
HP 1630D 100MHz Timing-25MHz State 43 channels. Glitch capture capability, 16 Timing channels and 27 state ch. simultaneously. ALL PROBES INCLUDED! HP 1630G with 65 channels  $350 pic 295
HP 1631D 50MHz  200MS/s  Scope & 100MHz  & 43Ch. Logic analyzer. Flexible triggering. WITH  PROBES  pic 750
HP 1650A 100MHz Timing-25MHz State 80 chan. ALL PROBES INCLDED. Menu driven user interface, Floppy  pic 550
HP 1650B 100MHz Timing-35MHz State 80 chan. ALL  PROBES INCLUDED. Menu driven user interface, floppy   pic . 650
HP 1651A 100MHz Timing-25MHz State 32 chan. ALL  PROBES INCLUDED .   Menu driven user interface, Floppy  pic . 495
HP 1651B 100MHz Timing-35MHz State 32 chan. ALL PROBES INCLUDED.   Menu driven user interface, Floppy  pic 550

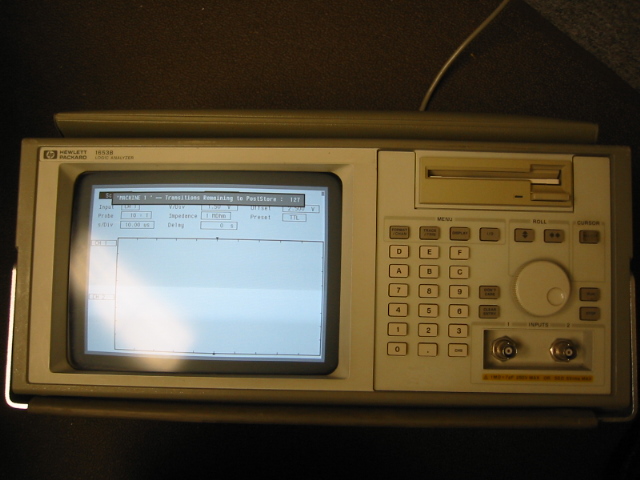

HP 1653B 100/35MHz Timing/State 32 channels with 100MHz 2 chan.l oscilloscope.  FDD  pic  ALL PROBES INCLUDED 750
HP 1661C 500/100MHz Timing/State 102 channels ALL  PROBES INCLUDED. 8kb/chan memory. HP Mouse. 950
HP 1662C 500/100MHz Timing/State, 68 chan. ALL PROBES INCLUDED. 8kb/chan memory. HP Mouse. 850
HP 1662AS 500MHz Timing-100MHz State 68 channels &  250MHz, 1Gs/s oscilloscope. 8kb/chan. Mouse, All probes included. 1450
HP 1662CS 500/100MHz Timing/State 68 chan. & 250MHz, 1Gs/s oscilloscope. 8kb/chan. Mouse, ALL  PROBES INCLUDED. 1750

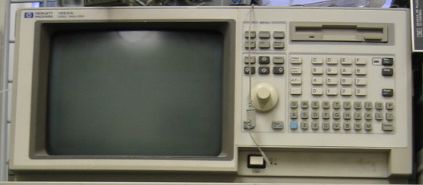

HP 1663A 500/100MHz Timing/ State 34 chan. ALL PROBES INCLUDED. 8kb/chan. Mouse, Floppy. pic 650
HP 16500A Logic Analyzer mainframe. Color 9" CRT, floppy,  4MB memory lets you use 16550A/16555A 250
HP 16500A 100/35MHz Timing/State 80 chan. ALL PROBES INCLUDED. Color Display, FDD,  4MB memory.  790
HP 16500A 500/100 MHz Timing/State 80 chan . ALL PROBES INCLUDED. Color, floppy, Printer port,  4MB memory  pic 895
HP 16500A Logic Analyzer-DS .WITH  PROBES Color, FDD,  4MB memory. Price is based on configuration. 6mo. warr.  pic call
HP 16500B Logic Analyzer 500MHz /110MHz Timing/State, 68 Chan. ALL PROBES INCLUDED. 2MB memory. 750
HP 16500C Logic Analyzer 500MHz /110MHz Timing/State, 68 Chan. ALL PROBES INCLUDED.2MB memory. 950
HP 16505A Prototype Analyzer. High level language debugging in windows environment for  HP 16500C/D 250
HP 16510A 100/35MHz Timing/State, 80 channels.  For HP 16500A/B/C.  150
HP 16550A 500/100 MHz Timing/State, 102 chan. ALL PROBES INCLUDED. 4K/8K per channel. For 16500A/B/C.  490
HP 16555A 500/110 MHz Timing/State, 68 chan. ALL PROBES INCLUDED. 2MB mem. WIth probes 595
HP 16555D 500/110MHz Timing/State, 68 chan. ALL PROBES INCLUDED. 2MB memory. Probes included 695
TEK TLA7M2 68Ch, 2GHz timing, 100MHz state analyzer module for TLA 700 series analyzers 495
TEK TLA704 Logic analyzer system. Boards are available separately 950
Tektronix 1241C Test probes and ROM packs only pic 250
TEKTRONIX 3002CH Logic analyzer with 20 channels at 400 MHz or 4 channels at 2GHz timing analysis. 24KB per channel. Included modules: 30HSM and 32GPD. Reqieres monitor. Probes & pods are available. 350
NETWORK ANALYZERS

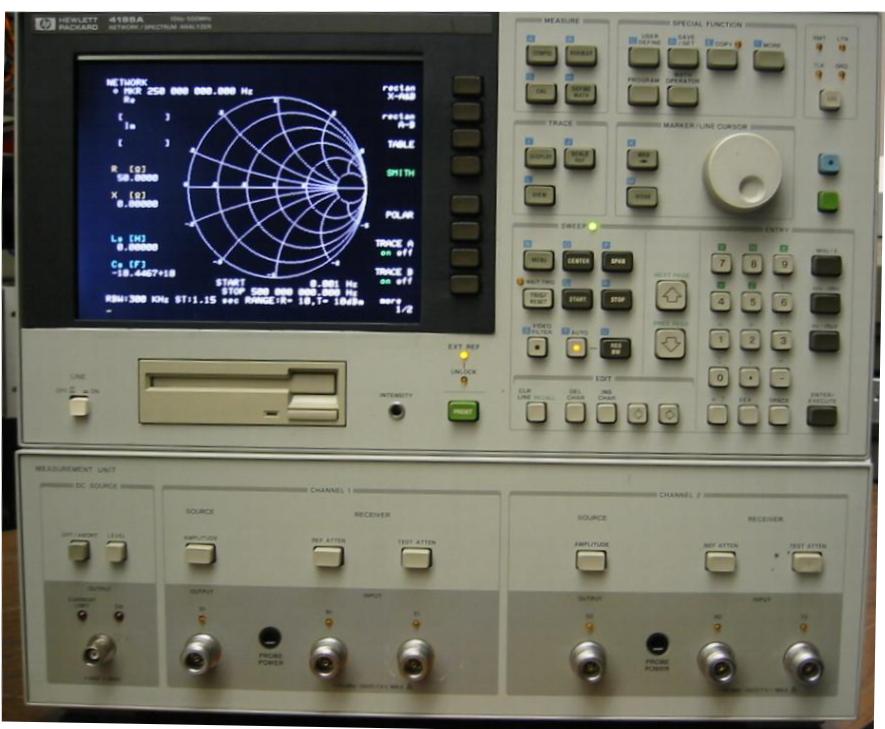

HP 4195A Repair Service. From $650 call

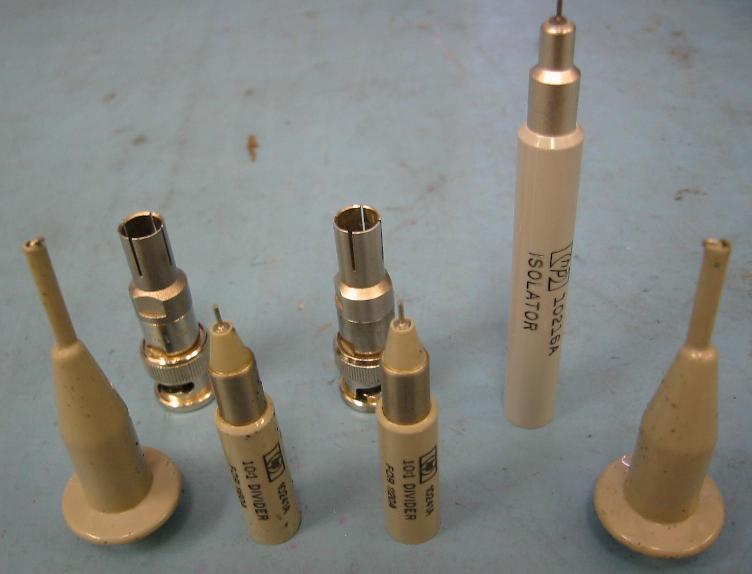

HP 8405A Vector voltmeter 1-1000MHz, 1uV-1V input, PLL capable. Accesories  picture   595
HP 8505A Vector network analyzer 500kHz-1300MHz. Measure Phase, Group Delay, Gain, Attenuation, Impedance, Return Loss, S-Parameters, Reflection Coefficient, Deviation From Linear Phase and Transfer Function   2500

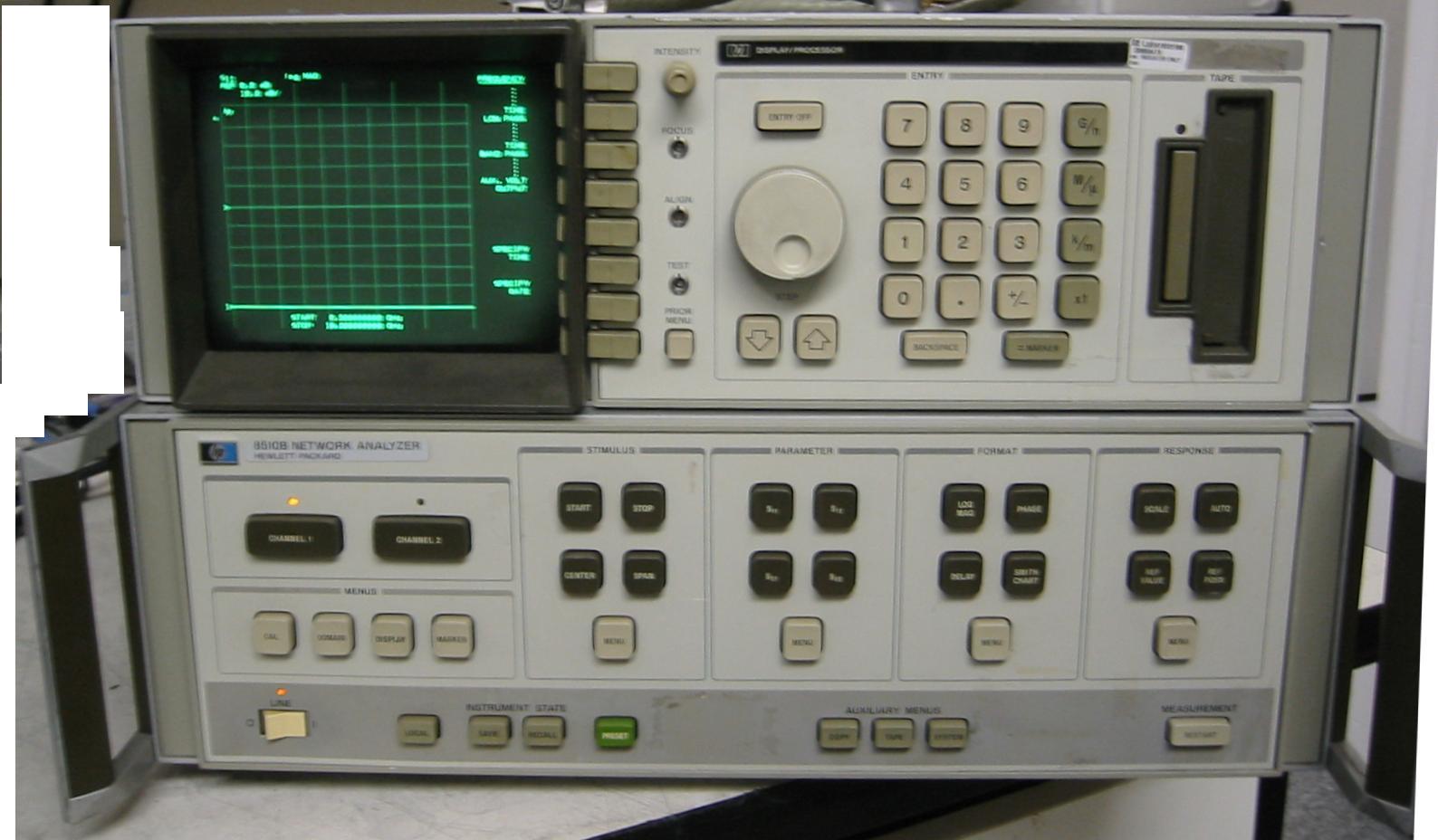

HP 8510B Network analyzer. Option 10. S-parameters test set cable included. pic    2000
HP 8515A S parameter test set for the 8510B Network analyzer. $1000 off if purchased with 8510B    3500
HP 8755C Scalar Network analyzer. 3 channel, 10MHz-18.5GHz. With HP182T display    650
HP 8756A Scalar Network analyzer. 3 input channels, 10MHz to 40GHz (signal detectors not included). GPIB output to printer      850
HP 89441A Vector/Signal analyzer opt. AY9, AYA, AYB, AY8. IN STOCK NOW!   11950
PM 1038-N10 Scalar Network Analyzer. Detectors and mainframe are available separately      950
PM 1038-D14M Scalar Network Analyzer chassi. Detectors and PM1038-N10 module are available separately      650
Wiltron 560 Scalar network analyzer, 10MHz to 40GHz. Three input channels. Memory. Detectors available   pic 650

AC LINE DISTURBANCE ANALYZERS
Agilent 6812B AC power source/ power analyzer 700VA, 300V, 45A peak. SOLD 3950
BMI 4800 AC power analyzer and data recorder. Detect virtually any type of problem with AC power 650
Dranetz 606-1 600 VAC max. Detects and measures Impulse, Sag/Surge,  Slow Average.  Clock with backup records time of of the event. Automatically prints disturbance information.  Built in printer. pic 650

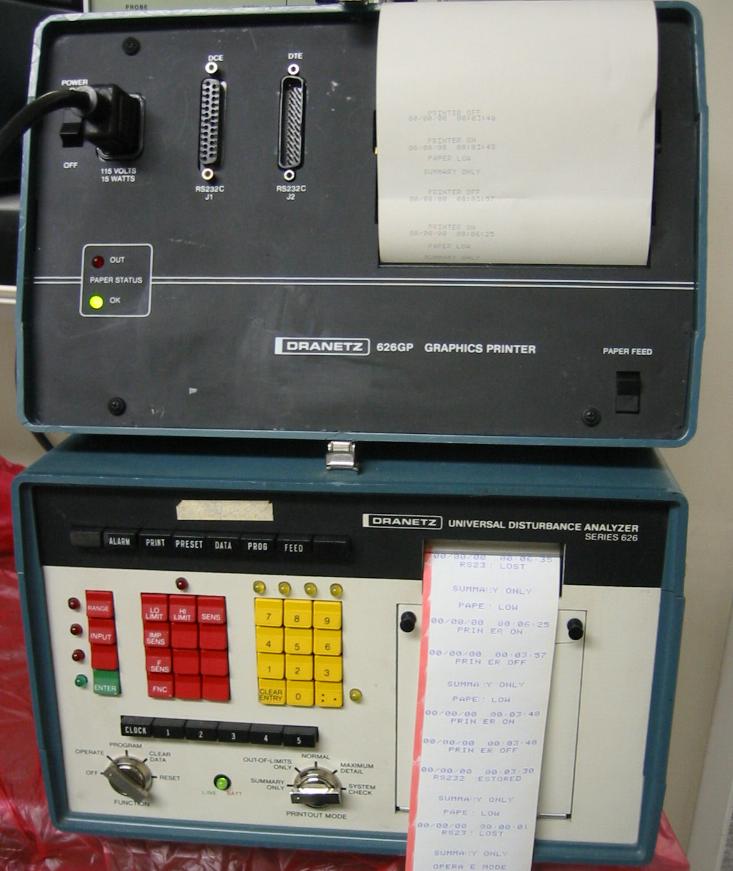

Dranetz 626 AC power analyzer with optional graphics processor 626-PA-6030, 626-PA-6002, 626-PA-6003, 626-PA-6006 and 626GP printer.  pic 695
Dranetz 808 Power demand analyzer with built in printer. Accurate record of  power consumption over time 795

SIGNAL ANALYZERS

Communication Analyzers: Protocol, LAN, Telephone, Cable

MISCELLANEOUS OTHER ANALYZERS

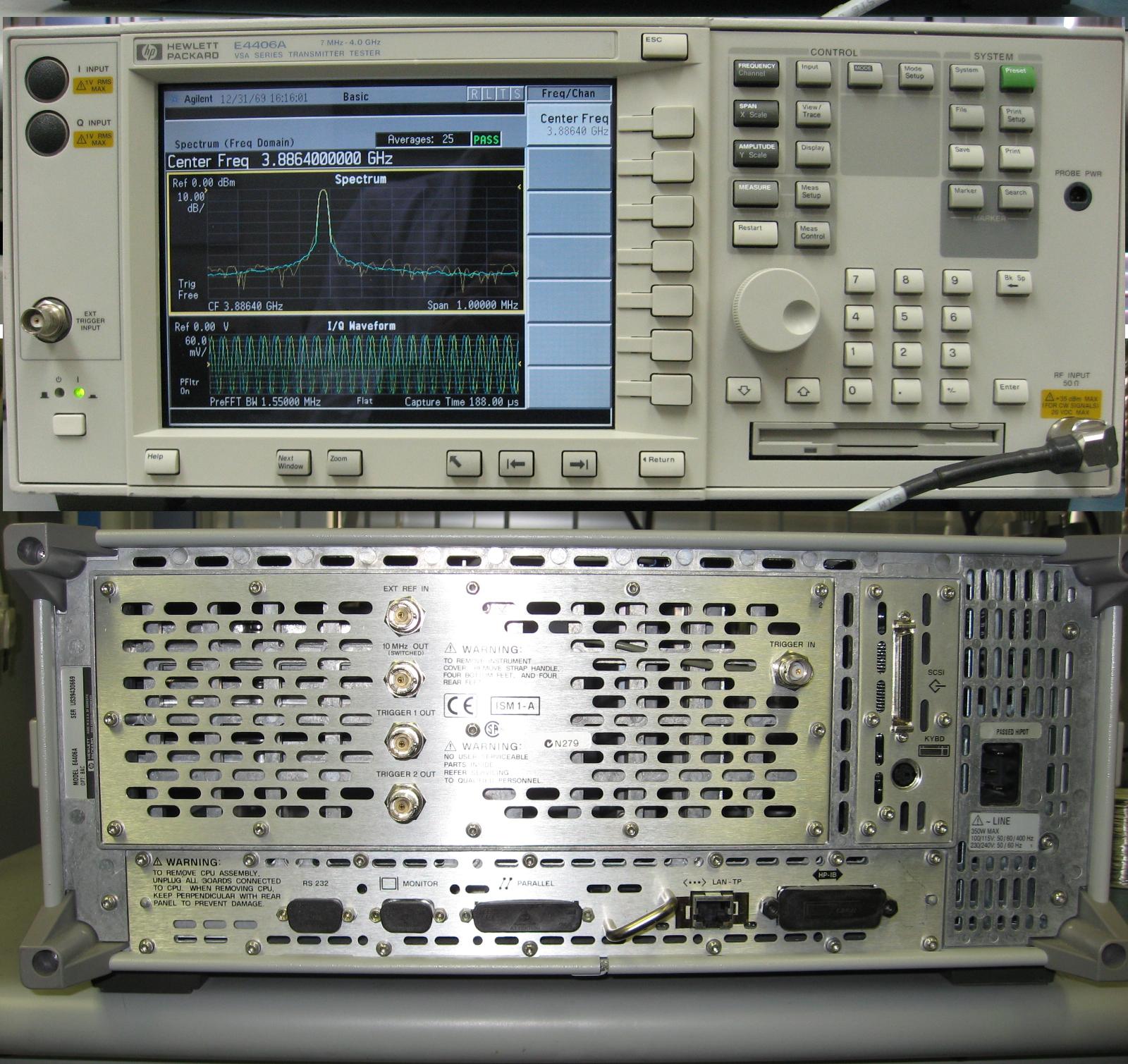

Agilent E4406A Communication Analyzer. Option BAC ( CDMA measurment personality ) pic 6500

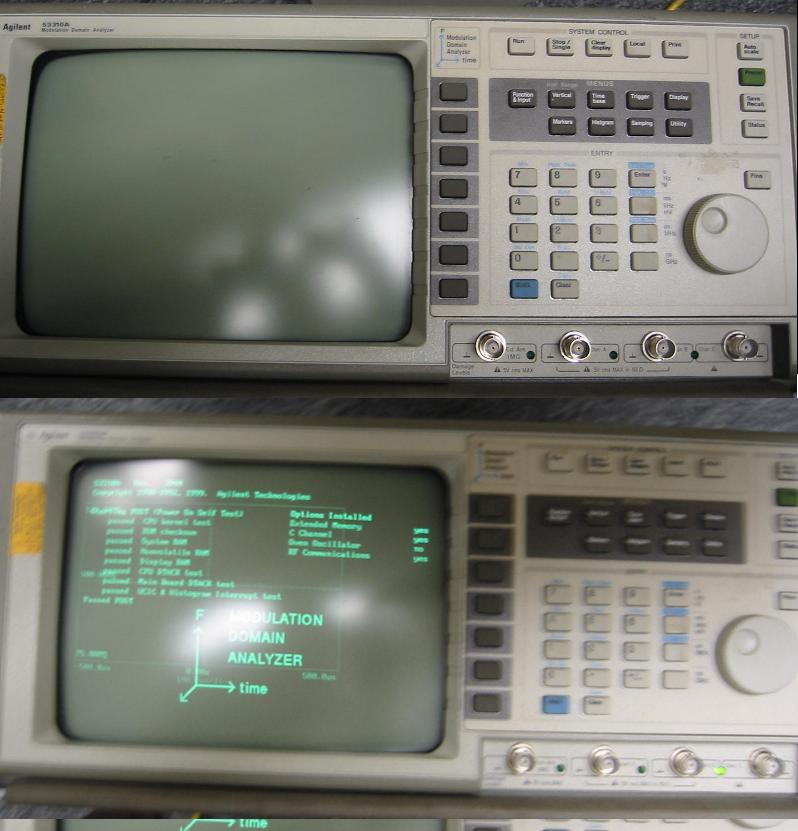

Agilent 53310A Modulation Domain Analyzer. 3 channel. 2.5GHz.  Options 1, 10, 30 SOLD 1995
Agilent 4155A Repair Service. From $950  pic call
Agilent 4155A Semiconductor Parameter analyzer. VSU and four SMU's. Free HP 16058B test fixture included with purchase 15750
HP 853A Spectrum analyzer mainframe. For HP 8557, HP 8558, HP 8559 modules. SOLD 650
HP 3561A Dynamic signal analyzer. Option 001. Newer s/n. DC-102kHz, 25uHz resolution, Input range: 22Vrms to 2.82mVrms 1450
HP 4145A Semiconductor parameter analyzer. Analysis of V/I characteristics of semicond. materials. pic HP16058A is available for $450 2500
HP 4145B Semiconductor parameter analyzer. COMPLETE with the HP 16058A, adapters, Triaxial cables (tn) 3950
HP 4145B Repair Service. From $650   pic call
HP 4155A Repair Service. From $950  pic call
HP 4155B Repair Service. From $950  pic call
HP 4155C Repair Service. From $950  pic call
HP 4156A Repair Service. From $950  pic call
HP 4156C Repair Service. From $950  pic call
HP 4194A Repair Service. From $650. call
HP 5372A Frequency domain analyzer. with opt 040 (FFT analysis). 500MHz BW 1950
HP 8750A Storage Normalizer unit. Adds digital storage to HP 8755, 8754A, 8505A, 8410/8412B. 150
HP 8901A Modulation analyzer. Measure AM/FM mod. with 1% accuracy. Also measures freq. & RF power 150kHz-1.3GHz 750
HP 8901B Modulation analyzer. Measure AM/FM mod. with 1% accuracy. Measures freq. & power. 150kHz-1.3GHz. opt 001 750
HP 8970A Noise figure meter. Provides accurate noise measurments up to 1500MHz 1200
HP 35660A Dynamic Signal Analyzer. 488uHz-102.4kHz, Two channels, Built in signal source, FDD, GPIB 1750
HP 35670A FFT Dynamic Signal Analyzer. 488uHz-102.4kHz, Two channels, Built in signal source, FDD, 90dB dynamic range pic 3500
HP 53310A Modulation Domain Analyzer. 3 channel. 2.5GHz. Options 001, 010, 030. SOLD 1995
Impulse Semi TLP Transmission Line Pulse Test System. Accurately measure ESD parameters for wafers or packaged devices.pic call
Minolta TV-2130 Color and Luminance analyzer. Analyzer any color displays for color purity and consistency 450
Minolta TV-2140 Color and Luminance analyzer. Analyzer any color displays for color purity and consistency 550
Minolta TV-2150 Color and Luminance analyzer. Analyzer any color displays for color purity and consistency 695
R&S CMT55 Radio Communication Analyzer with Optional GSM measurments mode. 0.1MHz-2000MHz, RF power, Frequency, Modulation, Modulation amplitude, SINAD, Oscilloscope, Transmitter or Receiver  test mode. picture 1500
Solartron 1250 Frequency response analyzer. dual channel, built in signal source. 4 digit accuracy. GPIB. SOLD 2500
Tektronix RFM151 CATV signal analyzer. Complete signal measurments from 5MHz-1080MHz. RS-232 interface. pic 995
Voltech PM100 Power analyzer. V/A/Wt single phase. With power plug adapter and cables.  pic  SOLD 995

WARRANTY UP TO 1 YEAR.   10 DAYS MONEY BACK
