GENERATORS: FUNCTION, PULSE, RF SIGNAL, VIDEO, DATA
| MODEL | FUNCTION GENERATORS | Price US$ |
|---|---|---|
| Agilent 33250A | Arbitrary/Function generator. 80MHz, Sweep, Burst, Noise, Pulse. sold | 2950 |
| Agilent 33120A | Programmable generator. NEW IN A BOX! 15MHz standard functions plus arbitrary waveforms. RS-232 & GPIB | 1295 |
| BK Precision 3011B | 2MHz Function Generator with Frequency counter and Pulse function. Simultaneous Pulse and Main waveform output | 150 |
| HP 3311A | 1MHz Function Generator. 600Ohm output, separate pulse output. | 150 |
| HP 3312A | 12MHz Sweep/Function Generator. Internal AM/FM modulation, dual outputs, Variable symmetry, Phase control | 350 |
| HP 3314A | 21MHz Function/Arbitrary waveform Generator. Internal AM/FM modulation, GPIB. SOLD | 750 |

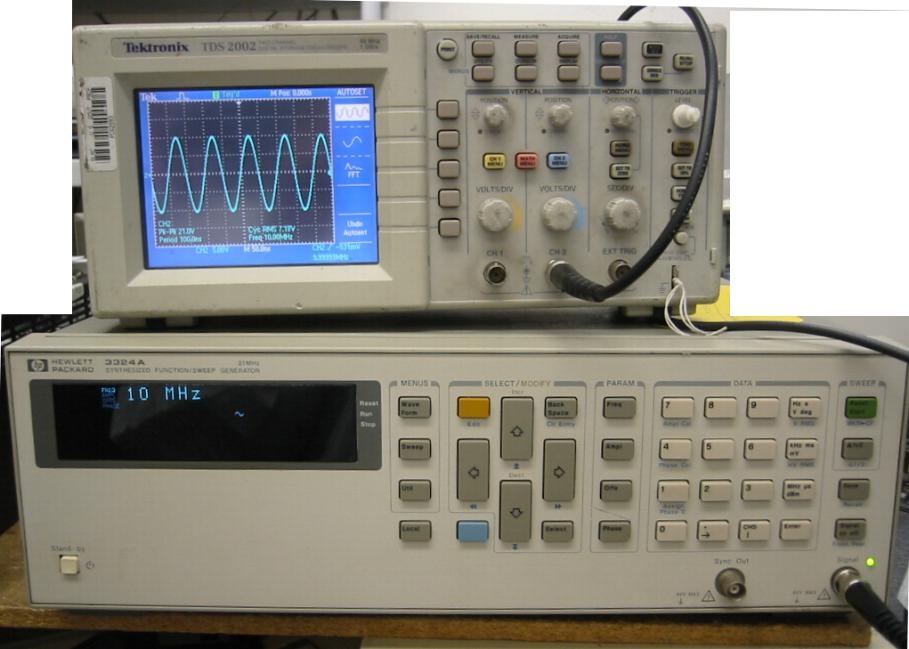

| HP 3324A | 21MHz Synthesized Programmable Sweep/Function Generator.1mHz to 21MHz @ +/-5PPM. Pic | 795 |
| HP 3325A | 21 MHz Synthesized Programmable Sweep/Function , 1 mV to 10 V. Option 001 available | 650 |
| HP 3325B | 21MHz Synthesized Function generator. Programmable Sweep, uHz resolution, 1 mV to 10 V with 1mV increment | 850 |
| HP 8116A | 50MHz pulse/function generator with GPIB interface. 15V p-pk output. Newer serial number | 1150 |
| HP 8165A | 50MHz Pulse Function Generator: 1.000 mHz to 50.00 MHz. Sine, Square, Triangle, Pulse, Ramp, Modes: CW, VCO, trigger, gate, FM and counted burst & optional Sweep (opt 2) SOLD | 950 |
| HP 8904A | Waveform synthesizer. DC-600kHz, 0.1Hz resolution, 3 1/2 digit amplitude accuracy. Opt 005 | 750 |
| Philips PM5193SM | Synthesized Function/Pulse/Sweep generator. 0.1mHz-50MHz with 8 digit resolution, GPIB, External source sync option (SM). Counted burst mode, AM/FM modul., TTL output | 1450 |

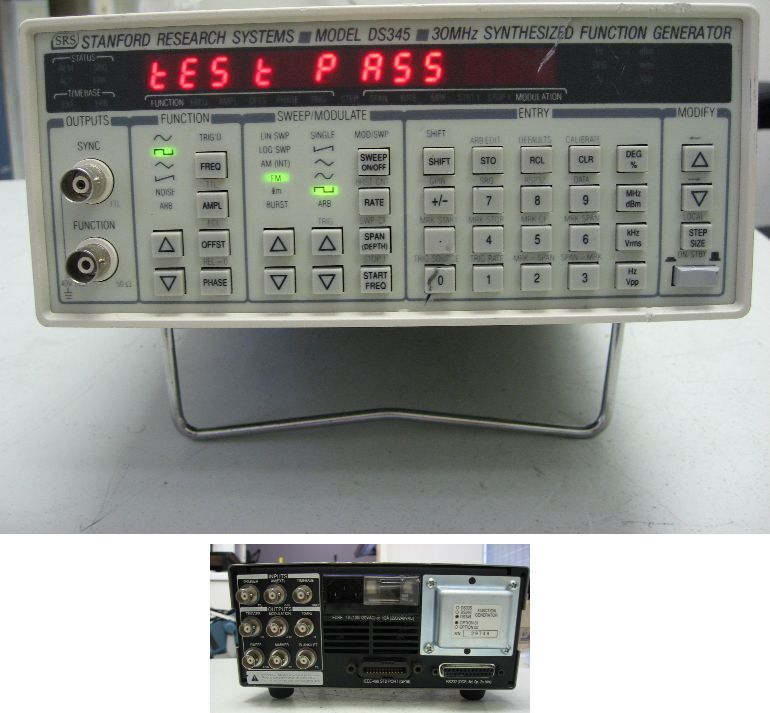

| Stanford Research DS345 | 30MHz Synthesized Function/Arbitrary/ /Sweep generator. GPIB (opt 001). 1 µHz to 30.2 MHz, 1 µHz resolution. Sine, square, ramp, triangle and noise, AM/FM/Burst/Phase. Info | 1295 |
| Topward TFG 4613 | 12 MHz function generator, Sine, Square, Triangular, Pulse. AM/FM/Sweep functions, dual output, Variable symmetry. Copy of the HP 3312A Pic | 185 |
| Tektronix CFG253 | 3MHz sweep/function generator with pulse function and 20dB attenuator. SOLD | 250 |
| Wavetek FG2A | 2MHz Function Generator with Pulse function. 20dB attenuator. Variable symmetry and DC offset adjustments SOLD | 150 |

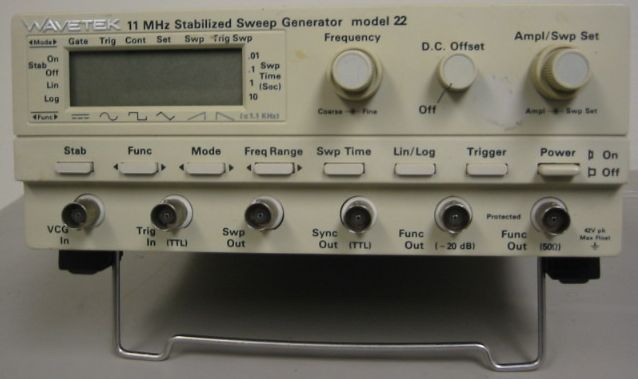

| Wavetek 22 | 11 MHz Frequency stabilized Sweep/Function Generator. Frequency accuracy is 0.09% over its 100 Hz to 11 MHz. LCD display, Lin/LOg sweep, 20V p-p, 6 functions, small size Full specifications | 450 |
| Wavetek 131 | 2MHz Function Gen. with Freq. control by ext.voltage, 50/600Ohm output, -60dB to +10dB | 150 |
| Wavetek 143 | 20MHz Function generator. 30 V pk-pk output, 80db attenuator, Pulse function. | 290 |
| Wavetek 145 | 20MHz Function/Pulse/Sweep gen. 30V pk-pk output, 80db attenuator. Ramp, addt'l TTL out | 350 |
| Wavetek 148A | 20MHz Function/Pulse/Sweep generator with AM/FM/PM modulation. 30V pk-pk output, 80db attenuator. Ramp | 395 |
| Wavetek 166 | Function/Pulse/Sweep Generator 0.01Hz-50MHz. 60dB attenuator, Adjustable rise/fall time. | 595 |
| Wavetek 178 | Synthesized Programmable Function generator. 0.1Hz-50MHz. GPIB. Opt 2 avail. Pic | 995 |
| Wavetek 180 | 2MHz Function Gen. with Sweep control. Standard waveforms plus var. symmentry | 150 |

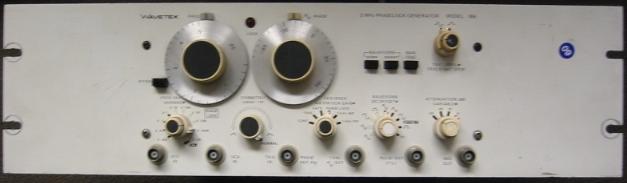

| Wavetek 186 | Phase lock generator. 0.0001Hz to 5MHz, phase lock to external freq., 30V p-pk output, int-ext AM/FM modulation | 490 |

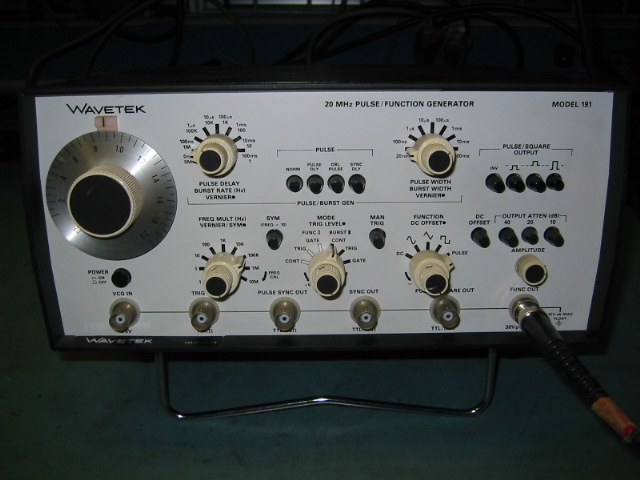

| Wavetek 191 | 20MHz Pulse/Function Generator with pulse burst mode. Separate pulse and function waveform outputs. Pic | 375 |
| Wavetek 186 | Phase lock generator. 0.0001Hz to 5MHz, phase lock to external frequency. Rack mount case. Pic | 550 |
| Wavetek 275 | Function-Arbitrary waveform generator. 10mHz-12MHz, Record length 8192 points (opt 4) | 795 |
| Wavetek 288 | 20MHz Synthesized Function Generator, 30V p-p output, FM/AM/Sweep/Phase Angle. | 495 |
RF and MICROWAVE SIGNAL GENERATORS |
||
| Eaton 384M | 1MHz - 4GHz., Synthesized signal generator , +18.5dBm max. power, Digital sweep, FSK/ FM/ AM/Phase modulation. 1Hz max resolution. PC programmable. With optional Eaton 255 modulator. Other plug-ins avail. Pic | 1595 |
| HP 4 Tone Gen. | 800-900MHz, 0-30dBm output, 10kHz & 0.1dBm set point resolution, CW only. Pic | 450 |
| HP E4421B | 250kHz-3GHz, Resolution:0.01Hz, Power: -130 to +13 dBm, opt. 1EM. Full specs | 2500 |
| HP 8350A | Sweep oscillator mainframe. Works with HP86000 series plug-ins with HP11869A adapter (available separately) | 595 |
| HP 8350B | Sweep oscillator mainframe. Works with HP86000 series plug-ins with HP11869A adapter (available separately) | 695 |
| HP 8601A | CW/Sweep Generator. 100kHz-110MHz in two ranges. -110dBm to +20dBm output. +/-1dB power accuracy. +/-0.25dB flatness over full range. Internal AM/FM modulation . Pic SOLD | 395 |
| HP 8616A | Microwave signal generator. 1.8-4.5GHz, 10mW max output (3mW>3GHz). SOLD | 395 |
| HP 8642B | Synthesized signal generator 0.1-2100 MHz. 1Hz resolution From -140dBm to +16dBm. AM/FM/Phase/Pulse modulation. High spectral purity. With opt. 001 <10E-9/day aging rate | 1900 |
| HP 8656B | Synthesized signal generator 0.1-990 MHz. -127dBm to +13dBm output. Opt.2 pic | 950 |
| HP 8657A | Synthesized signal generator 0.1-1047 MHz. From -127dBm to +13dBm output. Pic | 995 |
| HP 8657A | Synthesized signal generator 0.1-1047 MHz. From -127dBm to +13dBm output. opt 001 . Pic | 1150 |
| HP 8657B | Synthesized signal generator 0.1-2060 MHz. From -127dBm to +13dBm output. IEEE-488 | 1950 |

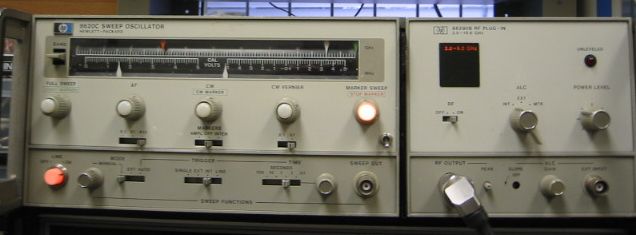

| HP 8620C | RF Sweep generator. Accepts plug-ins, that cover 10MHz to 22GHz range. 862XX plug-ins are listed below. PC interface (GPIB) option is available. pic | 350 |

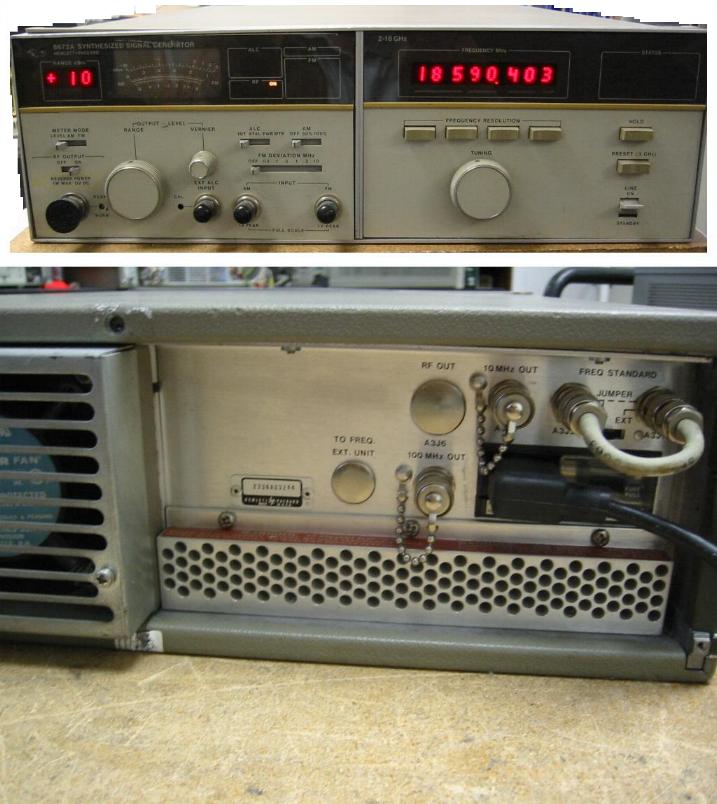

| HP 8672A | RF generator. 2-18GHz, Synthesized, Calibrated output -70dBm to 10dBM, GPIB. IN STOCK NOW! pic | 3295 |
| HP 8673D | RF generator. 10MHz-26.5GHz, output: 8dBm to -100dBm, AM/FM/Pulse modulation. SOLD | 6500 |

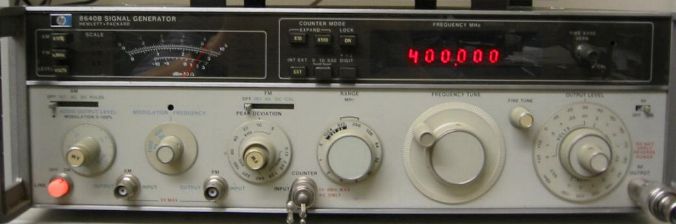

| HP 8640B | Signal generator 0.5 to 512MHz, Output +19 to -145 dBm, built in freq. counter, AM/FM modulation., PLL lock capability, Options. 1/2/3 are available pic | 750 |
| HP 8664A | RF signal generator 0.1-3GHz. With low noise and high stabiltiy options (001/004) Newer serial number | 3750 |
| HP 8690B | Sweep generator. 10MHz to 40GHz with appropriate plug-in. Newer serial number | 350 |
| HP 83525A | Sweep oscillator plug-in. Late serial number. 10MHz-8.4GHz | 1500 |
| HP 86220A | Sweep oscillator plug-in. Frequency range: 10MHz to 1.3 GHz.. >10dBm output | 395 |
| HP 86222B | Sweep oscillator plug-in. Frequency range: 10MHz to 2.4GHz.. >10dBm output. | 495 |
| HP 86222B-H07 | Sweep oscillator plug-in. Frequency range: 10MHz to 2.5GHz.. >10dBm output. | 595 |
| HP 86240C | Sweep Oscillator Plug-in. 3.6 to 8.6 GHz., +20dBm For HP8620 & HP8350A/B with adapter | 400 |
| HP 86241A | Sweep Oscillator Plug-in. 3.2 to 6.5 GHz, +8 dBm MAX level output, EXT. AM/FM mod. | 350 |
| HP 86242D | Sweep Oscillator Plug-in. 5.9 to 9 GHz, 10 mV MAX LEVEL OUTPUT. For HP 8620 | 350 |
| HP 86260A | Sweep Oscillator Plug-in. 12.4 to 18.0 GHz, 10 mW MAX level output. Opt 001 | 495 |
| HP 86290B | 2-18 GHz Sweeper Plug-in . Sweep or CW mode. 10 dBm max leveled output; Power variation: +/-0.9 dB internally leveled. pic | 950 |
| HP 86602A | Sweep Oscillator Plug-in. 1 to 1300MHz. For HP 8660 Generator | 750 |
| Wavetek 955 | Signal source 7.5-12.4 GHz, +10dBm, +/-0.1dB flatness, 25dB control range, Long term stability: 0.009%, Harmnonics: <-20dBc, Spurios noise: -55dBc. internal AM/FM modulation and Sweep, External power leveling and Phase lock . SOLD | 795 |
| Wavetek 1084 | 3500-4500 MHz Sweep/CW generator with digital readouts.+13dBm to -60dBm | 450 |
PULSE GENERATORS DATA GENERATORS SURGE GENERATORS |
||
| Bio-Rad Ecoli Pulser | High voltage pulse generator. 200V-2500V in 10V increment 125A max. peak current Output waveform decaying exponential RC time constant (R is a discharge load resistance) Designed for electroporation of samples pic SOLD | 595 |
| ELGEN-1000 | DC-2MHz, 170V p-pk output. 10mA max. High voltage pulse generator. | 1950 |
| HP 8007B | 100MHz, max repetition rate. Rise/Fall time <2nS-250uS, DC offset, TTL, ECL, pos/neg output | 350 |
| HP 8011A | 20MHz, Period: 50ns to 10s Pulse width: 25ns to 8 100ms. Pulse burst option 0-9999 pulse per cycle + $100 | 290 |
| HP 8012B | 50MHz. Independently adjustable rise & fall time time (5nS min). Up to 5V output. DC offeset | 395 |
| HP 8015A | 50MHz. Two outputs with independent amplitude control, adjustable transition times. 1-9999 pulses burst option | 395 |
| HP 8018A | 50MHz Serial Data/PRBS Generator, 2048 bit, dual channel memory, Variable word and pattern lenght, TTL, ECL, CMOS compatible, Programmable, prbs and mixed data. HPIB interface. | 250 |
| HP 8082A | 250MHz. Two outputs with independent amplitude control. Adjustable transition time 3nS minimum. | 850 |
| HP 8110A | 150MHz , With two HP 81103A output modules, 1.8nS transition time, 10V into 50Ohm. GPIB interface SOLD | 2995 |
| HP 8112A | 50MHz programmable pulse generator. Newer serial number. pic | 1395 |
| HP 8130A | 300MHz programmable pulse generator with optional second output (option 020) | 1950 |
| HP 8160A | 50MHz programmable pulse gen. 3nS Rise/Fall, 10V into 50Ohm. Optional 2nd output pic sold | 1500 |
| HP 8161A | 100MHz programmable pulse gen. 3nS Rise/Fall, 10V into 50Ohm. With optional 2nd output (020) | 1950 |

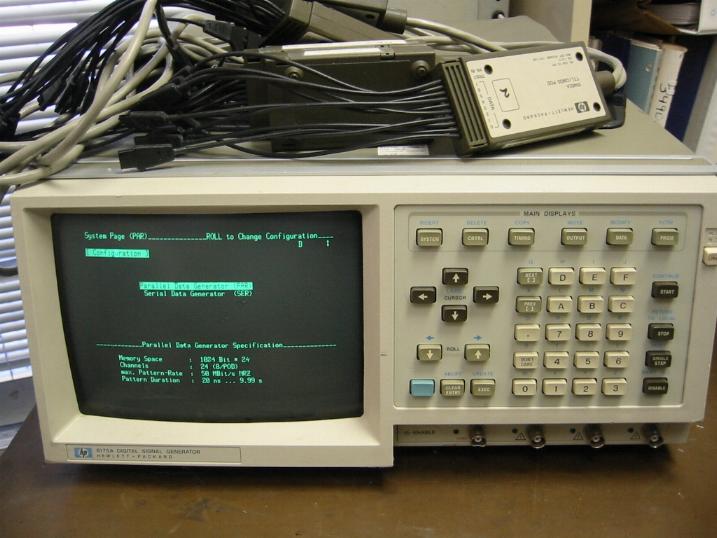

| HP 8175A | Digital data generator. 32 TTL/CMOS channels. All pods and flying lead probes included. pic | 1495 |

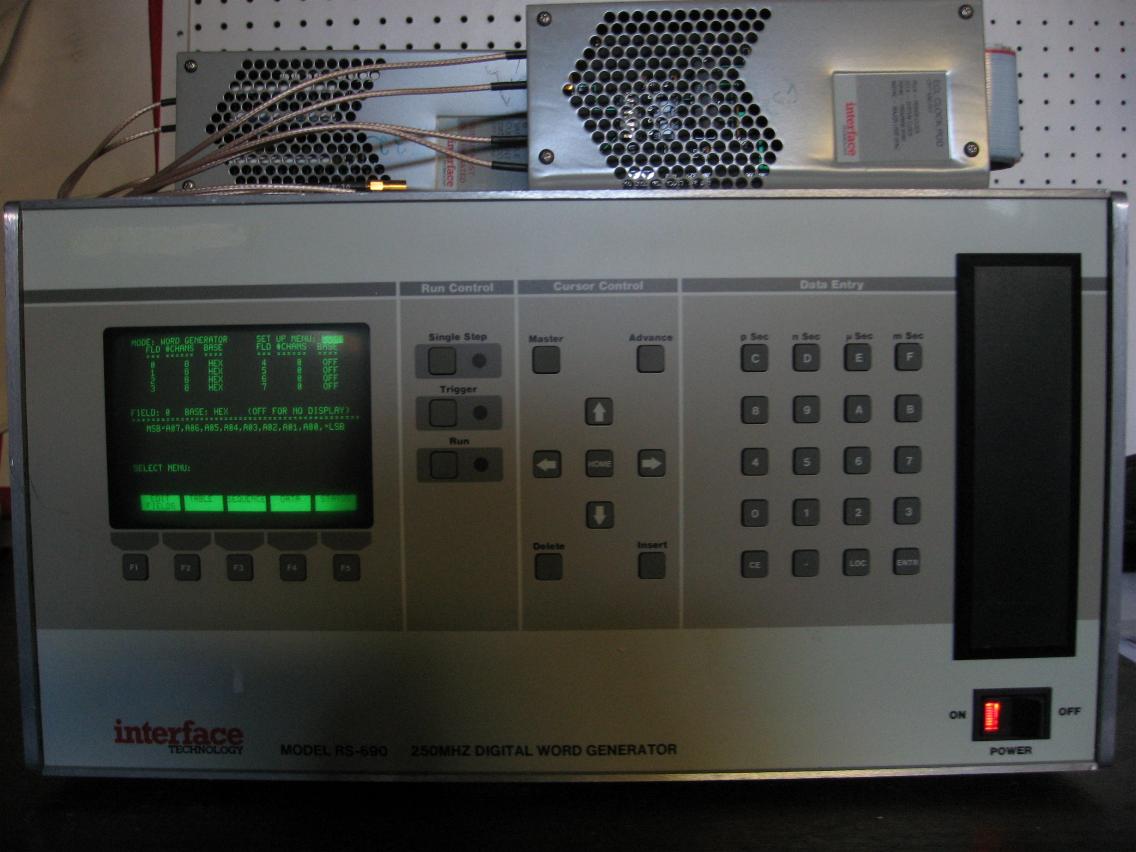

| Interface Technology RS-690 | 250MHz digital word generator. 64 channels, up to 16kB of data per chan. Min pulse width 4nS. Options included: Floppy disk, ECL pods, Variable current data pod (50Ohm) pic pic | 1250 |
| Datapulse 201 | Data-Pulse generator. Generate 16 bit serial data streams up to 10 MHz. Adjustable amplitude 0-10V and offset: +/-10V. Manual or Auto trigger. Sync clock outputs. requires external drive signal sinewave ( 1Vrms) or squarewave ( +/-0.5V). pic | 150 |

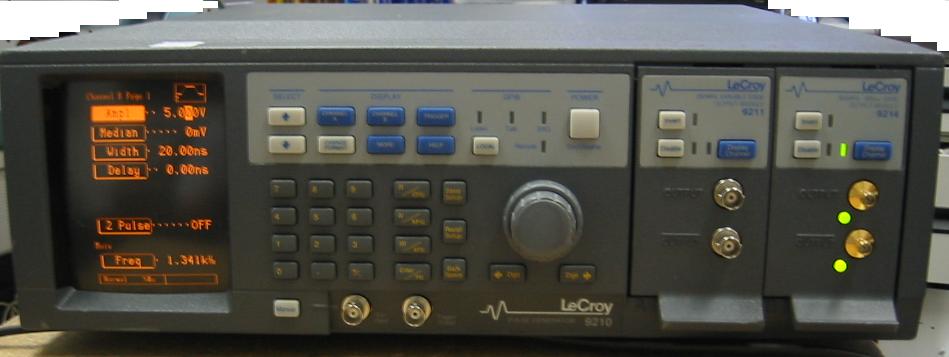

| LeCroy 9210 | Programmable pulse generator mainframe. 300MHz repetition rate. $700 discount with plug-in purchase. pic | 1950 |
| LeCroy 9214 | Pulse generator plug-in. 300MHz repetition rate. 300pS rise time, 5V into 50Ohm. | 1850 |
| TEK PG501 | 50 MHz Pulse generator. <20nS to 200mS period, <10nS to 100mS pulse duration . +/-5V output into 50 ohms, Square wave mode, <3nS Rise time, Ext. trigger In/Out Dual adjustable complim. outputs. pic | 190 |
| TEK PG502 | 10Hz-250MHz Pulse generator, 1nS rise time, +/-5V output (5V p-pk max). Single pulse mode. Pic | 250 |
| TEK PG505 | High voltage pulse generator. 1MHz repetition rate. 80V pk-pk into 4kOhm, Variable Transitions | 350 |
| TEK PG508 | Dual output pulse generator. 50MHz repetition rate, adjustable transition time, 20V p-pk max | 295 |
| TEK TG501 | Time mark generator for calibrating any oscilloscope time base. Optional 5MHz time base. | 395 |
| TEKTRONIX DG2020A | Digital Data Generator. Opt 02. Data pods not included. | 2950 |
| TEK HFS9003 | Programmable digital stimulus system. Modules are available separately. | 695 |
| TEK HFS 9DG1 | Programmable digital stimulus system. Modules are available separately. | 695 |
| TEK HFS DG2 | Programmable digital stimulus system. Modules are available separately. | 695 |
| TEK HFS 9DG2 | Programmable digital stimulus system. Modules are available separately. | 695 |
| Wavetek 680-3 | 100 MHz Pulse Generator Modules. Add channels to your Wavetek 869 modular pulse gen. | 190 |
| Wavetek EH2000 | 200MHz max repetition rate. 1nS rise time, 5V p-pk into 50Ohms. Fully programmable | 850 |
SINEWAVE GENERATORS |
||
| American Reliance AR-180T | Transmission loss tester with DMM function. Combines a 0dBm/-13dBm transmitter and AC voltmeter with dB scale. Olso measures DCV, and Ohms pic | 150 |
| HP 200CD | Sinewave oscillator 0.1Hz-600kHz, low distortion 600Ohm output. SOLD | 175 |

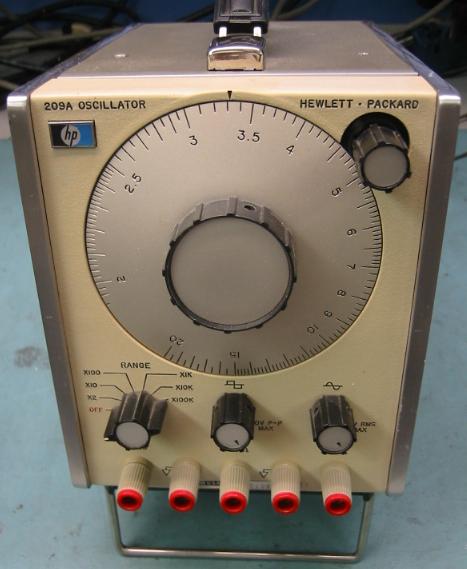

| HP 209A | Sinewave/Square wave oscillator 2Hz-2MHz, low distortion, 600Ohm output, dual output pic SOLD | 175 |
| HP 651A | Sinewave oscillator 10Hz-10MHz, low distortion. 60dB attenuator. Newer serial number | 175 |
| HP 3335A | Synthesized/Level Generator 200Hz-80MHz. 0.1dB output accuracy, Sweep, GPIB. | 1190 |
| TEKTRONIX SG502 | Oscillator, 5 Hz to 500 kHz Sine and Square Waves, Low distortion Sine Wave, 5 V RMS open circuit-600 Ohm source, 70dB attenuator with 10 dB steps. | 195 |
| Tektronix SG503 | 250 MHz leveled sinewave generator with Freq. counter. Requires TM 500 chassi. Newer s/n | 495 |
| Tektronix SG504 | 1024 MHz sinewave generator w/o output head. Requires TM 500 chassi. | 395 |
VIDEO, NOISE and SPECIAL GENERATORS |
||
| HP E4838A | Data generator front end plug-in. New factory sealed units. SOLD | 450 |
| CHROMA 2250 | Video Signal Generator. 250MHz pixel speed. 2048x2048, RS-232, Info Pic | 450 |
| HP 59308A | GPIB timing generator. Test GPIB interface timing accuracy | 490 |
| HP 16520A | Data pattern generator for HP 16500 series analyzers. ALL PROBES INCLUDED. | 490 |
| HP 16521A | Data pattern generator for HP 16500 series analyzers. ALL PROBES INCLUDED | 490 |
| HP 16522A | Data pattern/Vector generator for HP 16500 series analyzers. PROBES & PODS INCLUDED. | 1250 |

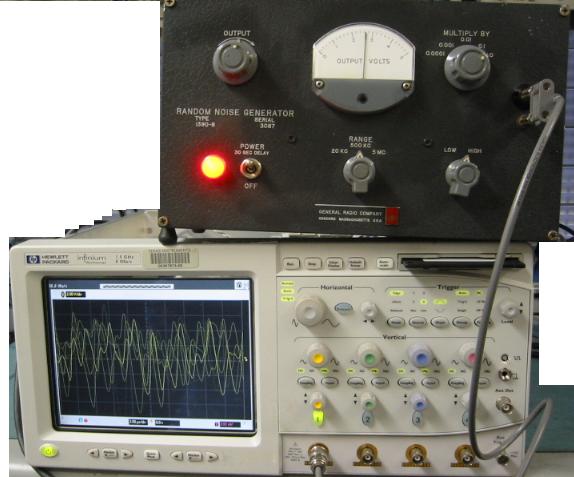

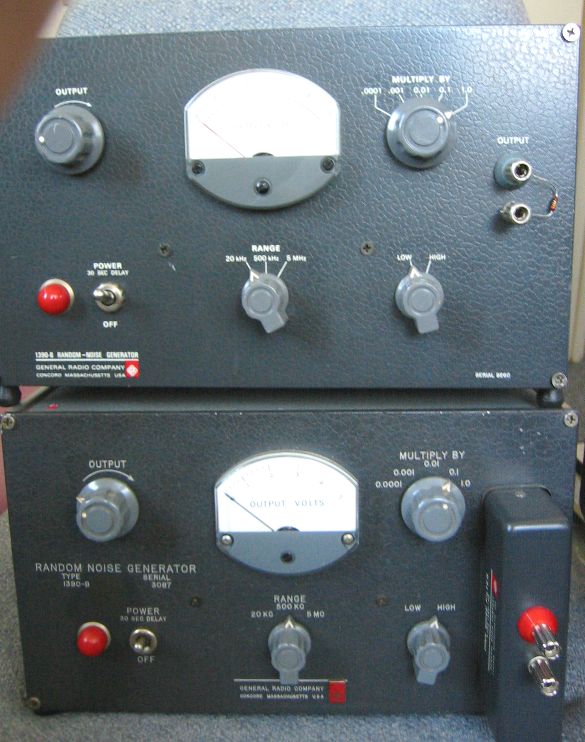

| G-R 1390B | Random noise generator, 3 ranges: 20kHz, 500kHz, 5MHz, 5V max output, 5 decades of attenuation. Pink noise Pic SOLD | 195 |
| Leader LCG-400 | Video Signal Generator NTSC. Sound, Variable Sync option, Gen-Lock, Optional Multiburst module, TV modulator Pic | 595 |

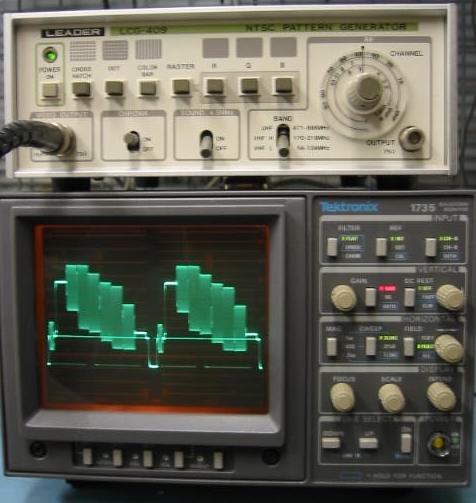

| Leader LCG-409 | Video Signal Generator NTSC. Composite & Channels 2 to 86, Sound, RGB, Battery/AC pwr. pic | 395 |
| Noise Lab ESS-625S | Electrostatic Discharge Simulator. 0-25kV. Selectable polarity. Pic Probe is not included. SOLD | 650 |
| NoiseKen ESS-625S | Electrostatic Discharge Simulator. 0-25kV. Selectable polarity. Pic Probe is not included. | 650 |
| Noise Lab INS-420 | Impulse noise generator. 0-2000V, 50nS-1uS, Phase control, Selectable polarity. Pic SOLD | 1950 |
| Quantum Data 8701E | 285 MHz analog video generator. Supports all forms of EIA composite sync. With. ACV 285 unit | 350 |
| Schaffner NSG222 | Interference generator. For use with Schaffener mainframe chassi only | 350 |
| Tektronix TSG130 | Miltiformat video test generator with audio outputs. | 595 |
| Tektronix TSG130A | Miltiformat video test generator with audio outputs. | 695 |
| Tektronix TSG170 | Video test generator. 15 test patterns. Digital genlock. NTSC format | 950 |
| Tek TSG 170 | Video test generator. 15 test patterns. Digital genlock. NTSC format | 950 |
| Tek TSG422 | Digital component generator for CCIR 601. Provides all test signals to evaluate & test 4:2:2 equipment. | 495 |
| Tek TSG 422 | Digital component generator for CCIR 601. Provides all test signals to evaluate & test 4:2:2 equipment. | 495 |
| Tektronix 1410 | Video test generator with SPG2, TSG7, TSP1, TSG3, TSG5, TSG6 | 595 |
| Tektronix 1411 | Video test generator with SPG12, TSG11, TSP11, TSG13, TSG15, TSG16 | 595 |
| Tektronix 1910 | Video test generator/ Inserter. Studio, transmitter abd transmission test signals. 10-Bit signal generation. Opt 1 avail. Pic | 995 |
| Tek VITS 100 | Video test generator/ Inserter. NTC 7, FCC, and VIR Signals. FCC composite, multiburst | 695 |
| Tek VITS100 | Video test generator/ Inserter. NTC 7, FCC, and VIR Signals. FCC composite, multiburst | 695 |
| Tek VITS 200 | Generator/Inserter NTC7, FCC, VIRS, and GCR Signals Cable Multiburst and Sweep Signals. | 995 |
| Tek VITS200 | Generator/Inserter NTC7, FCC, VIRS, and GCR Signals Cable Multiburst and Sweep Signals. | 995 |
| Tek VITS200 | Generator/Inserter NTC7, FCC, VIRS, and GCR Signals Cable Multiburst and Sweep Signals. | 995 |
UP TO ONE YEAR WARRANTY. 10 DAYS
MONEY BACK
NEED MORE INFO? WE CAN E-MAIL TO YOU DATA
OR A PICTURE
Back To EquipTek Labs Home Page
E-MAIL US
Call: 650-938-5511 From 9 to 5 Pacific Standard Time
WE REPAIR ALL BRANDS OF SIGNAL GENERATORS, FREE ESTIMATES
