OSCILLOSCOPES,   CURVE TRACERS,   X-Y DISPLAYS, PROBES  AND  ACCESSORIES
Back To EquipTek Labs Home Page                E-MAIL US

MODEL DIGITAL OSCILLOSCOPES ( DSO ) Automotive, Digital design, Production, Statistical Process Control Price US$
HP 1631D 50MHz  200MS/s  Scope & 100MHz  & 43Ch. Logic analyzer. Flexible triggering. All probes and other accesories included 750
HP 1662AS 250 MHz,  1GS/s, 2 Chan oscilloscope with 500MHz 68Channel Logic analyzer. FDD, Mouse. pic 2750
HP 16531A 100MHz, 400MS/s, 2 Channel module. For use with HP16500 logic analyzer chassis 250
HP 16534A 500MHz, 2GS/s, 2Chan. 32kB per chan. For use with HP16500B/C chassis. ( From $500 ) 1700
HP 54110D 1GHz, 2 Ch, 40 MS/s, 10 bit vertical resolution, Color, Autosetup, IEEE-488 interface 950
HP 54111D 500 MHz, 2 CH., 2GS/s max, 8K points record, Color, Autosetup, GPIB.   HP 54114A incl. 2300
HP 54201D 300MHz, 200MS/s, 2 Channel 50MHz glitch capture & 24 logic triggering channels. GPIB 650
HP 54501A 100MHz, 20MS/s, 4CH.  Auto waveform & parameter  measurments, Autosetup. GPIB pic  650
HP 54503A 500MHz, 20MS/s, 4CH.  Auto waveform & parameter  measurments, Autosetup. GPIB pic  950
HP 54510A 250MHz, 1GS/s, 2CH.  Auto waveform & parameter  measurments, Autosetup. GPIB pic  1250
HP 54510B 300MHz, 1GS/s, 2CH.  Auto waveform & parameter  measurments, Autosetup. GPIB pic  1450
HP 54522A 500 MHz, 2GS/s 2 CH, Floppy drive, Printer port. Large screen display. 1750

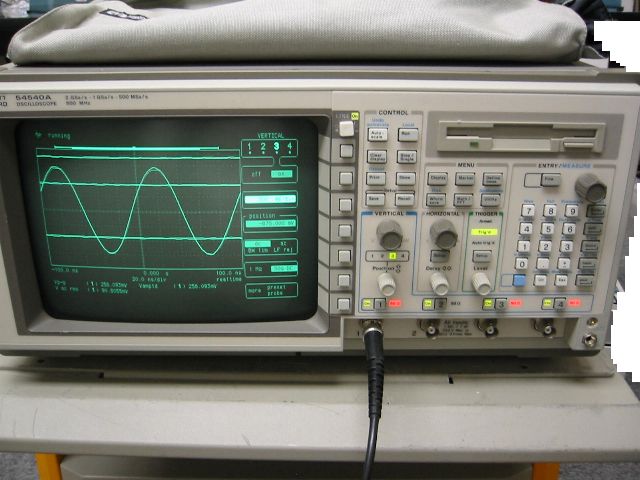

HP 54540A 500 MHz, 2 GS/s 4 CH, Floppy drive, Printer port. Large screen display. pic 3500

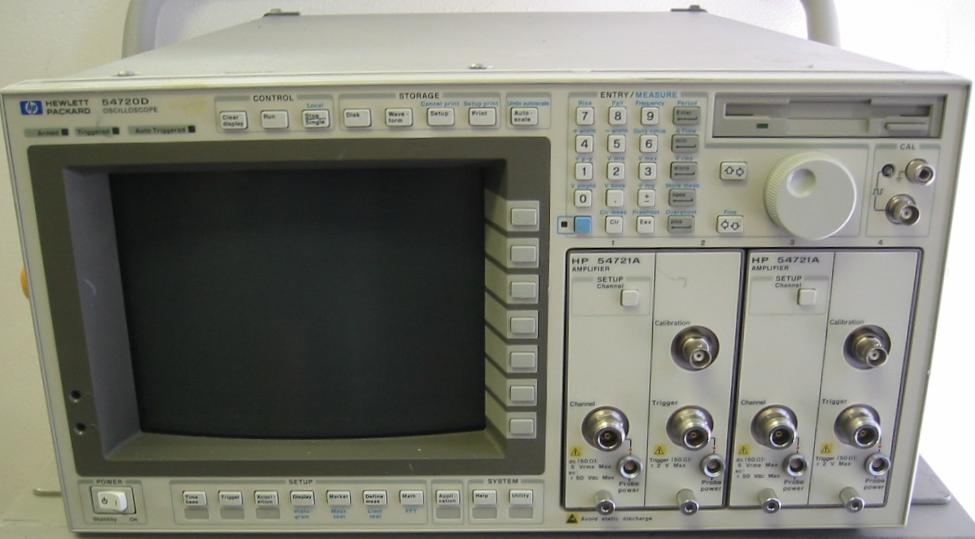

HP 54720D Oscilloscope mainframe. For use with 54700 series plug-ins. Pic 1500
HP 54721A 1GHz Vertical amplifier plug-in. For 54700 series oscilloscopes 750
HP 54750A Oscilloscope/Communication analyzer. 20GHz bandwidth. Plug-ins are available separately. SOLD 1500
LeCroy LC564A 1GHz, 4GS/s, 4CH., Color, Mass storage, GPIB, RS232, Centronics. Probes included. pic   4500
LeCroy LC584AL 1GHz, 8GS/s, 8MB record length, 4CH., Color, FFT and Jitter analysis. Built in Printer, FDD, GPIB, RS232 pic  SOLD  5495
LeCroy 7200A Digital oscilloscope mainframe up to 4 channels, Color, FDD, HD,GPIB, Printer port. pic    750
LeCroy 7242B Oscilloscope plug-in 500MHz, 1GS/s, 2 channel. Option L (20K memory). For Lec 7200A    950

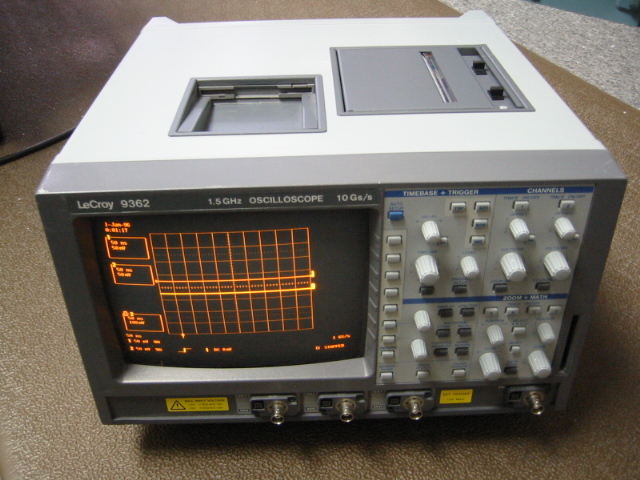

LeCroy 9362 1.5GHz, 10GS/s, 2CH., Color, FDD, GPIB, RS232, Centronics ports.  4950
LeCroy 9362C 1.5GHz, 10GS/s, 2CH., Color, built in printer, FDD, GPIB, RS232, Centronics ports.   5500
TEK DSA602 Digital signal analyzer/DSO. 1GHz BW, up to 12 input chan. Opt 4C.   650
TEKTRONIX TWD 120 Color Digital Storage oscilloscope on any PC.. 100 Megasaples/sec. 8 bit vertical resolution.  5000 points record per channel.  Smaller than a laptop.   Windows  3.1/95/98 software, Carrying case, Manual,  SCSI card and cable.  Pict1, Pic2   Demo download 290
TEK 222 Handheld 10MHz, 2 Chan. Digital storage, 10Ms/s, Battery or  12VDC operation.   850
TEK TDS340 100 MHz, 2 Chan, 500MS/s, 2mV sensitivity. Measure 11 waveform parameters automatically. Pic   750
TEK TDS 340 100MHz, 2 Channel., 500MS/s, 2mV sensitivity. Measure 11 waveform parameters automatically. Pic   750
TEK TDS360 200 MHz, 2 Chan, 1GS/s, 2mV sensitivity. Measure 11 waveform parameters. Floppy drive 1250
TEK TDS 360 200MHz, 2 Channel., 1GS/s, 2mV sensitivity. Measure 11 waveform parameters Floppy drive 1250

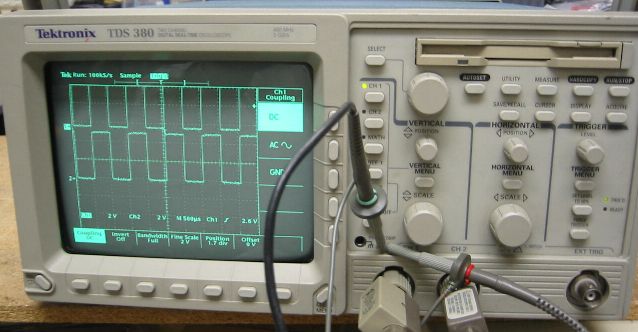

TEK TDS380 400MHz, 2 Channel,. 2GS/s, Floppy drive. Measure 11 waveform parameters simultaneously. pic 1350
TEK TDS 380 400MHz, 2 Channel, 2GS/s, Floppy drive. Measure 11 waveform parameters simultaneously. pic 1350
TEK TDS460 350MHz, 4 Ch,  120K Record (1M) & Video triggering (option 5), Floppy, GPIB. 1950
TEK TDS 460 350MHz, 4 Ch., 120K Record & Video triggering (option 5), Floppy , GPIB. 1950
TEK TDS520A 500MHz, 500MS/s,  2+2aux chan. GPIB, 6month warranty.  pic 1495
TEK TDS520 REPAIR. FLAT RATE SERVICE for $650. Quick turn around time 650
TEK TDS524A REPAIR. FLAT RATE SERVICE for $750. Quick turn around time 750
TEK TDS540 500MHz, 1GS/s, 4 channel. 50K record memory (opt 1M), GPIB, 6month warranty.  1750
TEK TDS540 REPAIR. FLAT RATE SERVICE for $650. Quick turn around time 650
TEK TDS540A REPAIR. FLAT RATE SERVICE for $750. Quick turn around time 750
TEK TDS544A REPAIR. FLAT RATE SERVICE for $750. Quick turn around time 750
TEK TDS640 REPAIR. FLAT RATE SERVICE for $750. Quick turn around time 750
TEK TDS640A REPAIR. FLAT RATE SERVICE for $750. Quick turn around time 750
TEK TDS644 REPAIR. FLAT RATE SERVICE for $750. Quick turn around time 750
TEK TDS644A REPAIR. FLAT RATE SERVICE for $750. Quick turn around time 750
TEK TLS216 REPAIR. FLAT RATE SERVICE from $750. Quick turn around time 750
TEK TDS820 REPAIR. FLAT RATE SERVICE for $850. Quick turn around time 850
TEK 2220 60MHz, 20MS/s, 2Ch, digital storage and analog scope in one instrument. 2mV-5V sensitivity 595
TEK 2430 150MHz, 2ch. 100 MS/s, One button Auto setup. Automatically measure V, Freq, Time pic 895

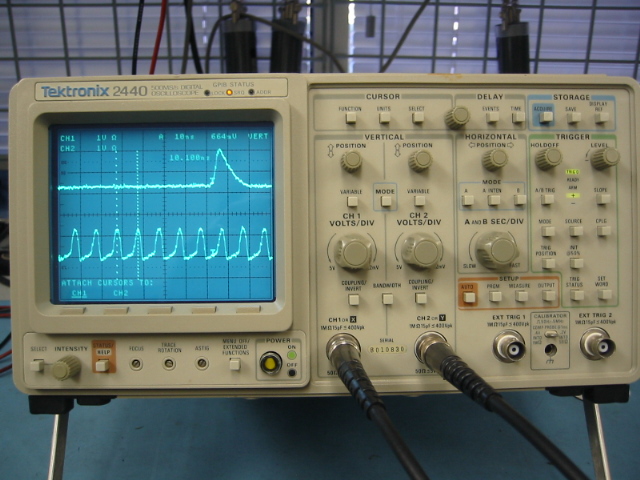

TEK 2440 300MHz, 2ch. 500 MS/s, One button Auto setup. Automatically measure V, Freq, Time pic 1300
TEK 2402 Oscilloscope processor. Add FFT, waveform storage & more to the TEK  2430, 2432, 2440 150

ANALOG OSCILLOSCOPES for Audio, Research, Laser, Students, Video
Hitachi V-212 20MHz, 2 Channel, 2mV sensitivity. X-Y mode. TV-sync trigger. Portable construction.  pic 195
HP 1980B Programmable 100MHz Oscilloscope. Available options: 150, 810,811, 960 1200
Kikusui COS 6100 100MHz, 5 Input channels let you observe 5 traces simultaneously, Dual time base 490
Tektronix T-922R 15MHz, 2 Ch.  rack mount oscilloscope , 2mV/div max sensitivity, 0.1uS -0.5S sweep pic 350
Tektronix TAS250 50MHz, 2 Ch, Cursor measurments of Time & Voltage. Video trigger, Compact size. CH1 out 350
Tektronix 475 200MHz, Portable, 2mV/div to 10V/div Vertical deflection range. probes. pic 90 day warr 495
Tektronix  TAS475 100MHz, 4 Chan, Automatic measurment of waveform parameters. 90 day warranty 495
Tektronix  475A 250MHz, Portable, 2mV/div to 10V/div Vertical deflection range, probes pic 90 day warr 550
TEKTRONIX 2213 60MHz  portable oscilloscope. 2mV sensitivity,. Lightweight: 13 lb.  6month warr. pic 350
TEKTRONIX 2213A 60MHz  portable oscilloscope. 2mV sensitivity,. Lightweight: 13 lb.  6month  warr. pic 395

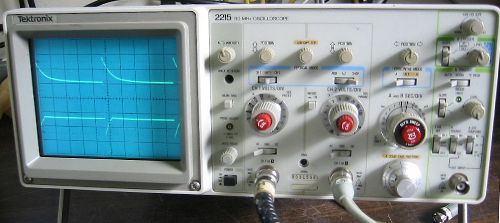

TEKTRONIX 2215 60MHz  portable oscilloscope. 2mV sensitivity,. Lightweight: 13 lb.  6month  warr. pic 395

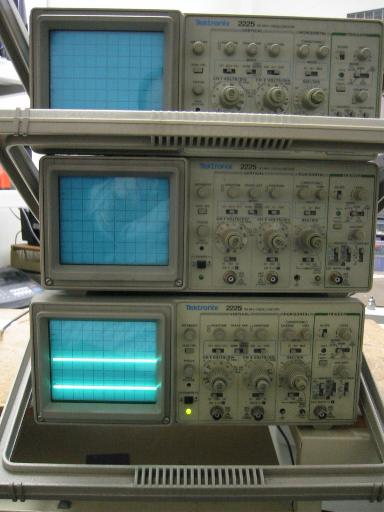

Tektronix 2225 50 MHz, 2 Channel, 2mV max sensitivity, Dual time base.Weights only 13lb 350

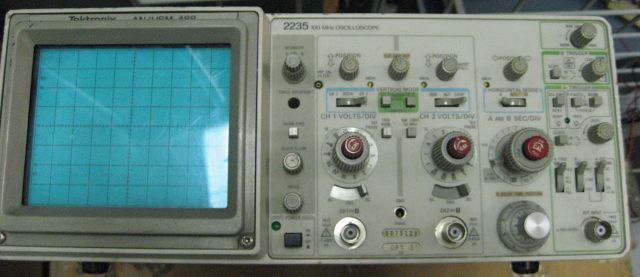

TEK AN/USM-488 100MHz , 2Ch,. 2mV sensitivity, dual time base. TV triggering.. only 13lb, 6month warr. pic 595
TEKTRONIX 2236 100MHz  scope with  Frequency Counter and Digital multimeter. 6 month warranty pic 590
Tektronix 2245 100MHz, 4 Channel, 2mV sensitivity. On screen readouts of control settings. .pic 495
Tektronix 2246 100MHz, 4 Channel, 2mV sensitivity. Cursor measurments of Voltage & Freq. pic 495
TEK 2445 150MHz, 4 channel. Dual time base. Portable, weight 22.4 lb. 90 day warr., 2 probes  pic 790

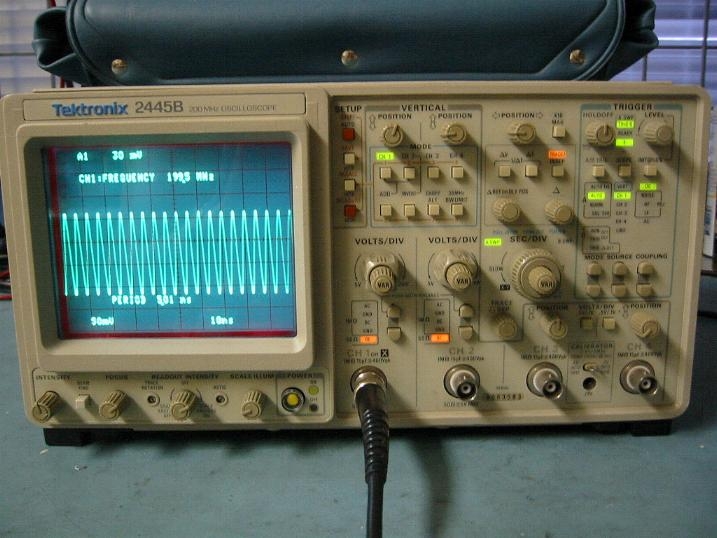

TEKTRONIX 2445B 200MHz, 4 ch.  with cursor measurements of V &  time. Dual time base. Portable, weight 22.4 lb. 90 day warr. two 200MHz probes, GPIB and other options available  pic 950
TEKTRONIX 2465 300MHz, 4 ch.  Cursor measurements of V & time. Dual time base. Portable, weight 22.4 lb. 90 day warranty, two 300MHz probes 995
TEKTRONIX 2465CTS 300MHz 4 chan.  with Counter-Timer and  GPIB IEEE-488 interface. Cursor measurements of V &  time. Dual time base. Portable, weight 22.4 lb. 6month warranty, two 300MHz  probes 1250
TEKTRONIX 2465B 400MHz  4 ch  500pS rise time. Auto setup feature, on-screen measurements of 12 waveform parameters. 90 day warranty,   Different options are available  pic 950
TEKTRONIX 2465BDM 400MHz  4 ch  500pS rise time. Auto setup feature, on-screen measurements of 12 waveform parameters. DMM, GPIB and Counter Timer  installed 1500
TEKTRONIX 2467 350 MHz  4 channel.  Autosetup. Microchannel CRT , Auto measure waveform parameters.

1300

TEKTRONIX 2467B 400MHz  4 channel.  Autosetup & Automatic waveform measurments. GPIB interface. pic

  2200

TEK R5113 2MHz dual beam analog  storage oscilloscope. 6.5" CRT.   Many plug-ins available       695
TEKTRONIX  7603 100MHz Modular oscilloscope. Up to 4 input channels. Large size CRT. 295
Tektronix 7623 100MHz, Analog storage oscilloscope. Choose from many types of plug-ins. 895
Tektronix 7633 100MHz, Analog storage oscilloscope. Choose from many types of plug-ins. 895
Tektronix  7834 400MHz, Analog storage oscilloscope. Excellent CRT condition. 4 input channels 995

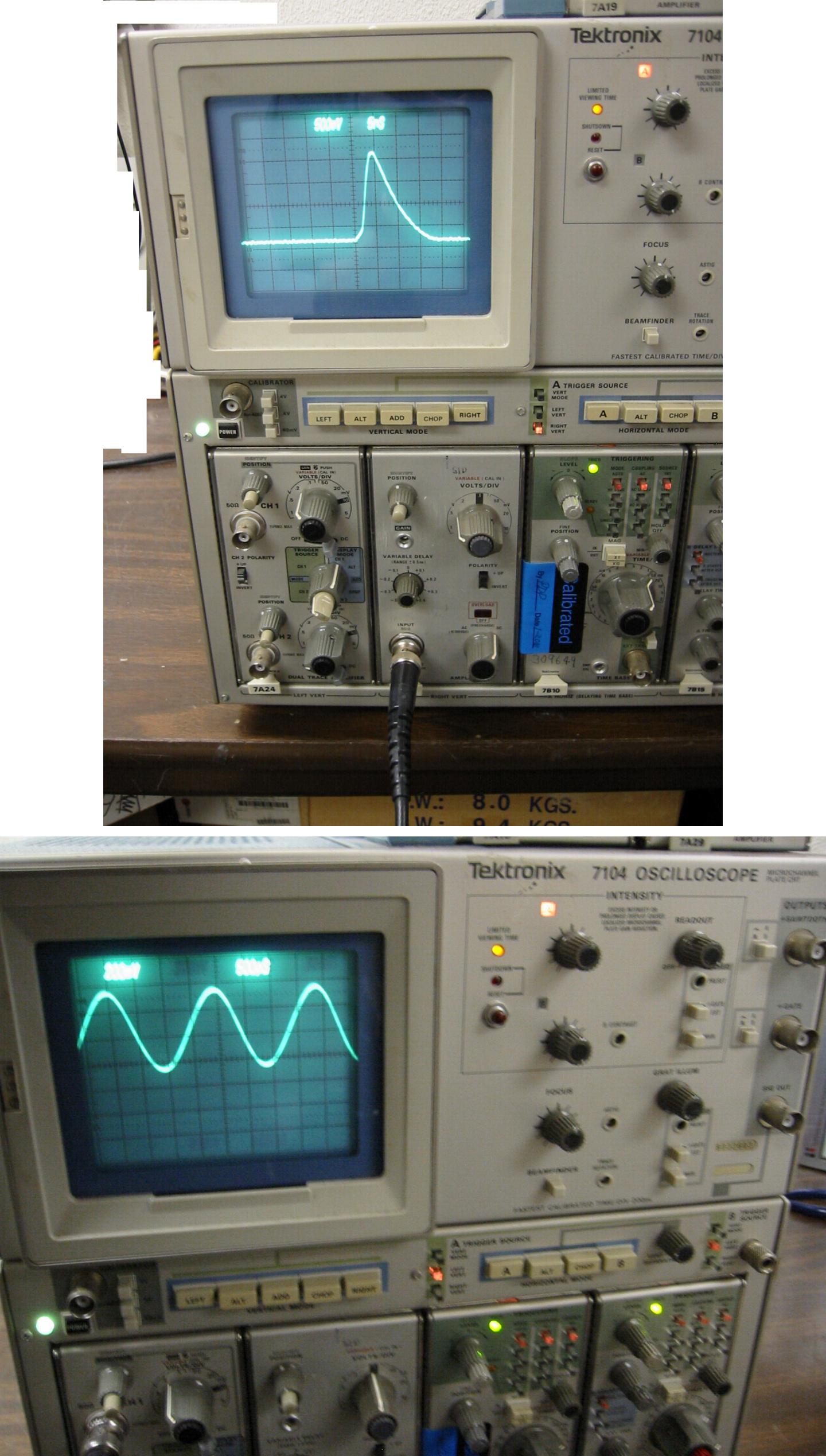

TEKTRONIX 7104 1GHz Oscilloscope, the fastest, real-time oscilloscope ever made.  Ultra-high writing speed of 20 cm/us. 350 ps rise time. Complete dual channel dual time base system pic 1750
TV WAVEFORM and   X-Y  MONITORS, SEMICONDUCTOR CURVE TRACERS, VECTROSCOPES, TDR's
Agilent 2090-0210 Color display module. Used in many HP & Agilent instruments. Factory sealed. 1yr. warr. Pic

650

HP 1332A High brightness, high speed   X-Y display. With opt C65. New units 295
Leader LBO-5860L TV waveform monitor. Dual channel, Line selection, field selection functions. 590
Leader LVS-5851A PAL/NTSC Vectroscope. Dual channel. Test circle. 450
Tektronix 620 X-Y Display 2 MHz X-Y, 5MHz Z bandwidth, 10x12 cm CRT. Opt 31. New units. Pic 290
Tektronix 624 X-Y Display 2 MHz X-Y, 5MHz Z bandwidth, 10x12 cm CRT. Similar to TEK 608. 290
TEK 528A TV waveform monitor. 2 video inputs, 1 or  4 V sensitivity, Horiz. mag. 1/2 rack size  350
TEK 5CT1N Semiconductor curve tracer.  Up to 0.5W. 10nA/div to 20mA/div, 0.5V/div to 20V/div horisontal factors. FET or Bipolar devices. Pic   350
TEK 577/D1 Curve tracer 100Wt, 10A continuous, 20A peak pulse current power. Test any semiconductor device for V-I characteristics. Also test batteries, lamps, relays. With standard 177 test fixture. 1750
TEK 577/D2 Curve tracer 100Wt, 10A continuous, 20A peak pulse current power. Test any semiconductor device for V-I characteristics. Also test batteries, lamps, relays. With stdandard 177 test fixture 1250
TEK 576 Tektronix 576 Curve tracer. 1500V, 10A, 150Wt max. Standard test fixture included. SOLD 2500
TEK 576 Tektronix 576 Curve tracer Flat Rate Rapair Service. From $650.  Pic call
TEK 067-1345-00 Tektronix 370 series curve tracer calibration fixture. With accesories 1750
TEK 1420 NTSC Vectroscope with  two separate input channels.   Phase adjustment. Open frame chassi 350
TEK 1485R NTSC/PAL Waveform Monitor. User selectable display for line, field and sync. two inputs, variable vertical gain 750
TEK 1503B Metallic cable TDR. Find faults in coaxial cables up to 50,000ft. With batt. option. Printer avail. 1450
Tektronix 1730 Waveform Monitor. Dual channel, Microprocessor control. Front panel setup memory. info Free rack with 2 unit purchase 750
Tektronix 1735 Waveform Monitor. Dual system; NTSC/PAL. pic 1250
Tektronix 1750 Waveform Monitor/Vectroscope and Phase display. NTSC. pic 1300

OSCILLOSCOPE PROBES, OSCILLOSCOPE ACCESORIES, PLUG-INS
Agilent E2613A Wedge Probe Adapter for TQFP and PQFP, 3 Signal. New in a box. Save 50%.!!! 59
Agilent E2615A Wedge Probe Adapter for TQFP and PQFP, 3 Signal. New in a box. Save 50%. !!! 59
TEK 5A14N 4 Channel Vertical amplifier plug-in for the TEK 5000 series oscilloscopes. 175
TEK 5S14N 1 GHz  Time equivalent sampler for 5000 series.  Rise time <350pS, Dual ch., 2V p-p max 500
TEK 7A13 Differential comparator pluig-in  for 7000 series oscilloscopes. 170
TEK 7A22 Differential Amplfier. 1MHz BW, 10uV-10V, 100,000:1 CMMR Low pass/High pass filter 150
TEK 7A24 350 MHz dual channel vertical amplifier for 7000 series oscilloscopes. 5mV to 5V per/div. 195
TEK 7S11 Sampling unit which accept diffirent types of sampling heads.   pict 190
TEK 11A32 Vertical amp pluig-in for 11XXX and DSA series oscilloscopes. 350
TEK 11A71 Vertical amp pluig-in for 11XXX and DSA series oscilloscopes. 250
TEK 11A72 Vertical amp pluig-in for 11XXX and DSA series oscilloscopes. 285
HP OSCILLSCOPE PROBES: HP 10441A, 10300A, 10350A, 10390A
TOO MANY OTHER PROBE TYPES TO LIST,  PLEASE  EMAIL YOUR REQUIREMENTS
Fluke VP190 200MHz, Oscilloscope probe with accesories. New units. Gray or Red color available        120

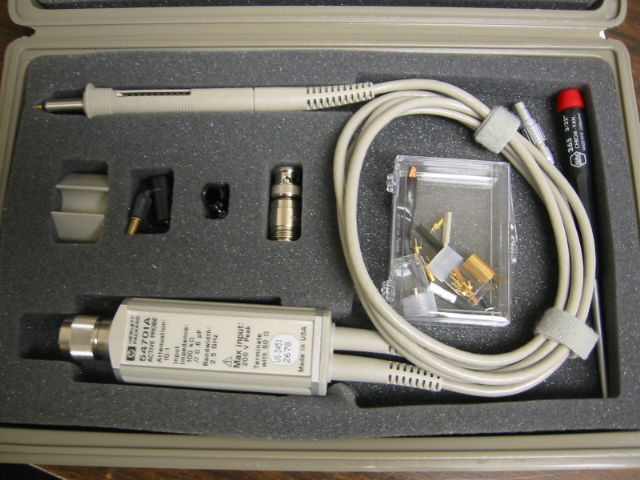

HP 54701A 2.5GHz Active probe with complete set of accesories.        650
LeCroy PP006 500 MHz, 10MOhm, General purpose oscillscope probe. Can be used with any scope. New        190
TEK AM503 Current probe amplifier. For TEK A6302, A6303 probes.

250
TEK P2200 200MHz  x1/x10 passive probe  for any oscilloscope. New in original package        150
TEK P2220 200MHz  x1/x10 passive probe  for any oscilloscope. New in original package        170
TEK P5050 500MHz  x10 passive probe  for any oscilloscope. New in sealed package        250
TEK P6015 High voltage oscilloscope probe. 75MHz BW,  40kV max. Works with any oscilloscope

450
TEK P6046 Differential probe. DC-100MHz. 2mV sensitivity. Works with any oscilloscope. All accesories

250
TEK P6109 150 MHz  probe, Rugged modular construction. 11.8pF. For any oscilloscope. Accesories incl          85
TEK P6130 250 MHz probe, 10.8pF, x10, 1.5m long. For any oscilloscope         95
TEK P6133 150 MHz probe, 11.4pF, x10, 1.3 or 2.0m long. For any oscilloscope          85
TEK P6156 3.5GHz, 50Ohm passive probe. Opt 25 only        120
TEK P6201 900MHz FET probe for 50 Ohm or 1 MOhm systems. Requires +/-15V power. Accesories. 295
TEK P6202A 500MHz FET probe for 50 Ohm or 1 MOhm systems. 2pF input capacitance. Dynamic range +/-6.0V ( 60V with external attenuator). 10x attenuation. DC Offset nulling. 250
TEK P6230 1GHz active probe for use with any oscilloscope. TEK probe power jacks or +/-15V power supply required        175

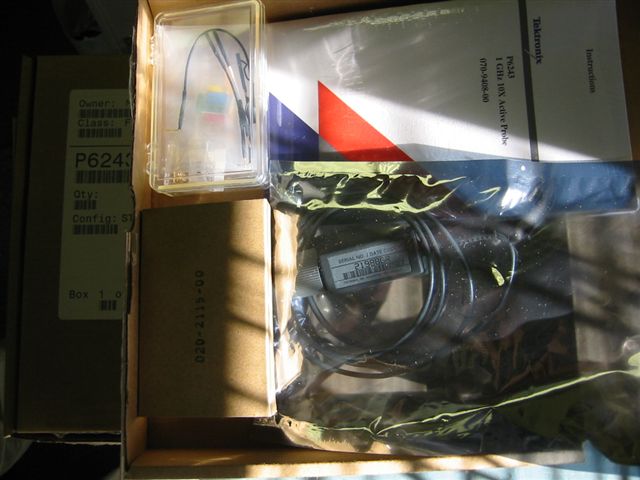

TEK P6243 1GHz active probe. For use with TDS series oscilloscopes. Accesories included        490
TEK P6245 1.5GHz active probe. For use with TDS series oscilloscopes. Accesories included        490
TEK P6247 1GHz active differential probe. For TEK  TDS series oscilloscopes. Most accesories included     1995
TEK P6249 4GHz active probe. For use with TDS series oscilloscopes. Most accesories included        795
TEK P6339A 500 MHz  probe for TDS oscilloscopes. Unused  with all  accesoires. Save $700! 490
TEK S-3A Sampling head DC- 1GHz with probe. Rin= 100kOhm, <2.3pF. Complete set of accesories.

250

TEK S-4 Sampling head DC-14GHz for 7S11 or 7S12 ( see above )

395
TEK S-6 Sampling head DC-11.5GHz for 7S11 or 7S12 ( see above )

395
TEK SD-26 Sampling head DC-26.5GHz

1950
TEK S-52 Pulse generator head 25pS rise time for 7S11 or 7S12 ( see above )

495
Yokogawa 700988 400MHz, 10MOhm,  x10 oscilloscope probe. 600V max

150
Yokogawa 700998 150MHz, 10MOhm, x10 oscilloscope probe 600V max

65

  UP TO 1 YEAR  WARRANTY and 10 DAYS MONEY BACK
NEED MORE INFO?  WE CAN E-MAIL OR FAX TO YOU DATA OR  A PICTURE
Back To EquipTek Labs Home Page                E-MAIL US
Call:  650-938-5511 From 8:30 to 6 Pacific Standard Time

OSCILLOSCOPE REPAIR ALL BRANDS, FREE ESTIMATES. ALSO AVAILABLE OBSOLETE TEKTRONIX OSCILLOSCOPE PARTS.
REPAIR OF  DISCONTINUED TEKTRONIX OSCILLOSCOPES 2445, 2465, 2465B, 2467, 2467B, TDS 320, TDS 350, TDS 360, TDS 380, TDS 420, TDS 420A, TDS 460, TDS 520A, TDS 524A, TDS 540,  TDS 544A, TDS 620B, TDS 640B,  TDS 644B, TDS 680B, TDS 684B, TDS 744A, TDS 784A, TDS 754A, TDS 784B.
We have repair solution for the color TDS models with defective flyback transformer (p/n 120-1930-00) and CRT's (640-0077-01, 154-0968-00, 154-0968-01).
TDS320, TDS350, TDS360, TDS380, TDS420, TDS420A, TDS460, TDS520A, TDS524A, TDS540,  TDS544A, TDS620B, TDS640B,  TDS644B, TDS680B, TDS684B, TDS744A, TDS784A, TDS754A, TDS784B
